Ingiant RF Slip Ring out diameter 110mm with 2 channels RF signal and 22 channels power

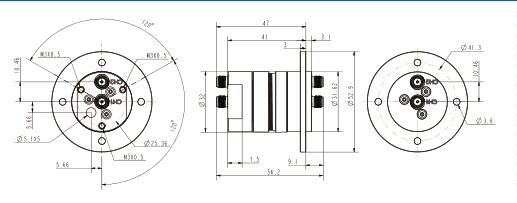

Standard product outline drawing:

RF Slip Rings :2 channels RF rotary joint + electric combination slip ring

Highly customized requirements, frequency DC-4.5, DC-18, 14-14.5GHz

DHS110-22-2S RF slip ring is also called RF rotary joint, high frequency slip ring, high frequency rotary joint. outer diameter 110 mm, 2 channels RF signal, combined power, signal is a product specially developed to meet the needs of high-speed serial digital signal or analog signal transmission. The maximum transmission rate can reach 40GHz. RF slip rings are mainly used to transmit RF signals, HD signals, microwave signals, etc. The key internal brushes must be made of highly elastic and wear-resistant materials, and the surface of the rings must be treated with advanced special electroplating to ensure reliable transmission of high-frequency/RF signals.

Product Features:

• Frequency: DC-18GHz
• Hybrid power supply or signal transmission
• Low insertion loss, excellent standing wave ratio
• Support 2 RF channels

Typical applications:

Radar, ship-borne satellite communication devices, vehicle-borne satellite communication equipment, satellite vehicles, emergency rescue command vehicles, high-end robots, rotating turrets on vehicles, remote control systems, radar antennas, medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency lighting equipment, robots, exhibition/display equipment, etc.;

Our advantage:

1. Company advantage: 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent. Provide OEM and ODM service, over 20 years of industry-related industry experience.
2. Product advantage : To ensure only the highest quality products, We’ll perform the tests  in-house laboratory, High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance.
3. Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
