Ingiant RF slip ring out diameter 120mm 5 channels RF rotary joint + electric combination slip ring

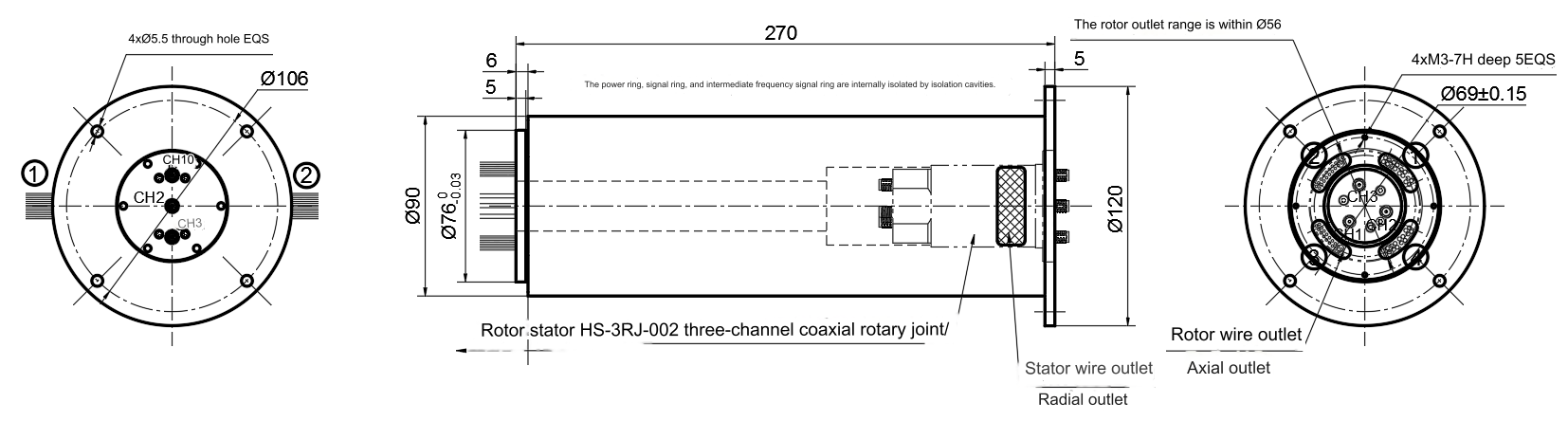

Standard product outline drawing:

RF slip ring –5 channels RF rotary joint + electric combination slip ring
Available for Custom, DC-4.5, DC-18, 14-14.5 Frequency Rate(GHz)

DHS120-120-5S RF slip ring, 5-channel RF rotary joint combined power, signal is a product specially developed to meet the needs of high-speed serial digital signal or analog signal transmission. The maximum transmission rate can reach 40GHz.
· This series of products supports single-channel RF signal transmission alone, and can also support mixed transmission of RF signal with 24V control signal, communication signal, power supply, and fluid medium.
· The RF signal uses a 50Ω characteristic impedance RF coaxial structure head. (Other specified connectors can be transferred, and the wire specifications RG178, RG316, RG174, etc. are optional)

Features

• Use 50Ω characteristic impedance RF coaxial structure head
• Can be combined with power and signal transmission
• Low insertion loss and voltage standing wave ratio
• Support 5 RF channels

Typical applications:
Radar, ship-borne satellite communication devices, vehicle-borne satellite communication equipment, satellite vehicles, emergency rescue command vehicles, high-end robots, rotating turrets on vehicles, remote control systems, radar antennas, medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency lighting equipment, robots, exhibition/display equipment, etc.;

Our advantage:

• 1：Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
• 2：Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
• 3：INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warranty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
