Ingiant rotor flange conductive slip ring out diameter 224mm with 20channels 10A/channel power

Short Description:

DHS224-20-10A series rotor flange conductive slip ring

· DHS224-20-10A series rotor flange conductive slip ring is a general term for a series of slip rings with a rotor part with an outer diameter of 224mm and a connecting flange. Transmission power 20 channels 10A/channel.

· Rotor flange slip ring, can be used for rotary table, cable reel, packaging equipment.

· Solid slip ring, no through hole in the center, suitable for flange end face installation.

· Can achieve more channels and larger current.

· Internal wiring and special shielding module design are convenient, more stable and reliable.

Send email to us

Product Detail

Product Tags

DHS224-20-10A
The main parameters
Number of circuits	20	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

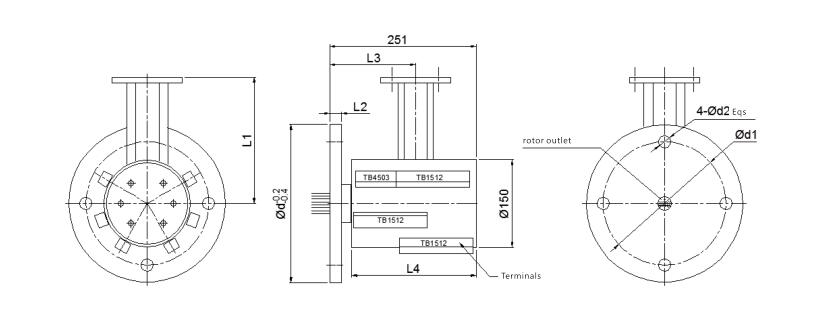

Standard product outline drawing:

DHS224-20-10A series rotor flange conductive slip ring

· DHS224-20-10A series rotor flange conductive slip ring is a general term for a series of slip rings with a rotor part with an outer diameter of 224mm and a connecting flange. Transmission power 20 channels 10A/channel.
· Rotor flange slip ring, can be used for rotary table, cable reel, packaging equipment.
· Solid slip ring, no through hole in the center, suitable for flange end face installation.
· Can achieve more channels and larger current.
· Internal wiring and special shielding module design are convenient, more stable and reliable.

Typical applications:

Industrial machine processing centers, rotary tables, heavy equipment towers, cable reels, packaging equipment, magnetic clutches, process control equipment, rotary sensors, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, revolving doors, etc.;

Our advantage:

Company advantage: Transmission technology for complex industrial and safety-relevant applications form the core of our product range. All products can be individually adapted to the applications in order to offer you added value. Premium engineering – that is our claim for every single product we manufacture. We would like to convince you of this.
Product advantage : To ensure only the highest quality products, We’ll perform the tests in-house laboratory, High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance.
Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
