Ingiant Rotor flange slip ring out diameter 44mm 41 channels power and signal with a flange on the rotor part
|
DHS044-41 |
|||
|
The main parameters |
|||
|
Number of circuits |
41 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

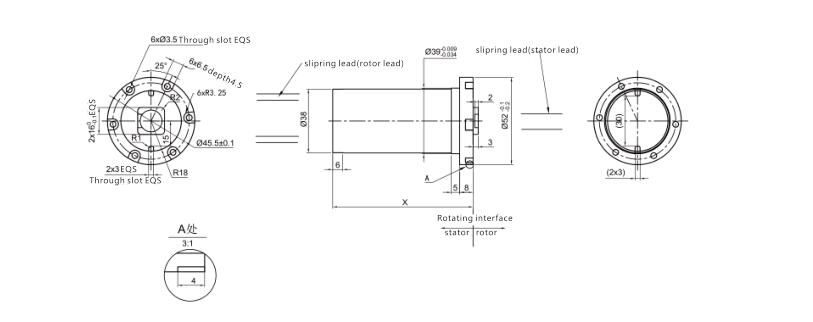

Standard product outline drawing:
Rotor flange slip ring: Customized OD 44mm solid shaft slip ring
DHS044-41 rotor flange slip ring outer diameter of 44mm, which transmits 41 channels of power and signals. The rotor flange slip ring is a slip ring with a flange on the rotor part, which can be directly connected with the customer’s flange and rotate continuously. It is mainly used in situations where 360-degree continuous rotation is required and the power supply and signal cannot be interrupted.
Product features:
- Solid slip ring, no through hole in the center, suitable for flange end face installation
- Industrial grade product, rotor flange, IP65, P68 optional
- Solid slip ring, no through hole in the center, suitable for flange end face installation
- Gold-gold contact, imported seal and high-level electroplating treatment
- Multi-point contact, waterproof gland for outgoing line, cable, etc.
Typical applications:
Industrial machine processing centers, rotary tables, heavy equipment towers, cable reels, packaging equipment, magnetic clutches, process control equipment, rotary sensors, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, revolving doors, etc.;
Our advantage:
- 1）Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
- 2）Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- 3）Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
