Ingiant Servo slip ring customization accepted, 1-4 standard motors optional

Short Description:

Servo Slip Ring – DHS140 Series

Customization accepted, 1-4 standard motors optional



Servo slip rings are conductive slip rings used in servo encoders and servo motors. Servo slip rings can save a lot of cables and installation work. Suitable for various servo motors and stepper motors, it can not only supply power but also transmit various data. Usually gold-to-gold contact is used, and the design is reasonable to avoid internal and external interference.


Product Detail

Product Tags

DHS140-198

The main parameters

Number of circuits

198

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

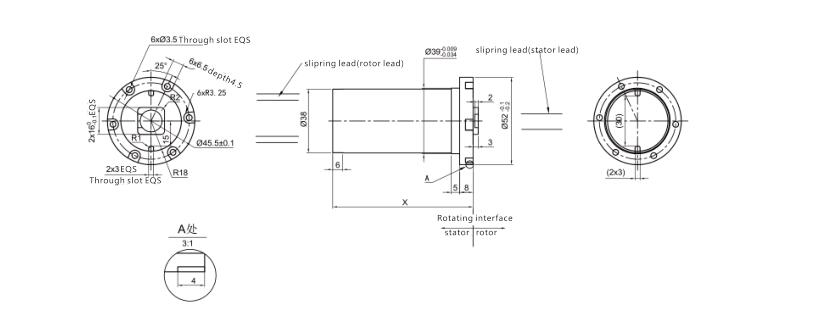

Product drawing:

DHS039-23-004

Servo Slip Ring – DHS140 Series

Customization accepted, 1-4 standard motors optional

Servo slip rings are conductive slip rings used in servo encoders and servo motors. Servo slip rings can save a lot of cables and installation work. Suitable for various servo motors and stepper motors, it can not only supply power but also transmit various data. Usually gold-to-gold contact is used, and the design is reasonable to avoid internal and external interference.



Features

  • Can mix other switching signals and power lines, buses such as Profibus, Profinet…
  • Can be mixed with other gas-liquid rotary joints.
  • Internal wiring and special shielding module design can completely prevent the encoder from reporting error codes.
  • Gold-gold contact, extremely high reliability, many years of experience in using Siemens/Heidenhain large-scale control systems
  • The contact part adopts rare metal + hard gold plating process to ensure wear resistance and oxidation resistance, thus ensuring a long service life.
  • Can customize various types of servo motor slip rings, encoder conductive rings, automated servo system slip rings, etc.

Typical applications:

Mainly used in various servo systems at home and abroad: such as Japan’s Yaskawa, Panasonic, Mitsubishi, German Siemens servo motors, French Schneider servo motors, German Lenz servo motors, Austrian B&R servo motors, Keba servo motors, Israeli Fagor servo motors , Germany’s Beckhoff servo motor, Elmo servo motor, American AB servo motor, Ruinuo servo motor, and China’s Delta servo motor, TECO servo motor, Shenzhen Inovance servo motor, Huazhong CNC servo motor, Lechuang servo motor , Guangtai CNC, etc.;

QQ图片20230322163852

Our advantage:

  1. Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
  2. Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
  3. Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.

 QQ截图20230322163935
