Ingiant slip ring for camera technology

Short Description:

Application filed: HD network monitoring systems, air traffic control, and camera technology,Optical fiber reels, unmanned vehicles, Satellite communication systems, medical treatment equipment, radar antennas, aerostat mobile platforms, ,submarine towed optical cables, wind energy, helicopters, optogenetics.

Send email to us

Product Detail

Product Tags

Specification

DHS012-10-5A
The main parameters
Number of circuits	10	Working temperature	“-40℃~+65℃"
Rated current	Can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP51
Insulation resistance	≥100MΩ @500VDC	Housing material	Stainless steel
Insulation strength	500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	5A per circuits with 2 AF-0.35mm^2, rest with AF-0.15mm^2
Rotating speed	0~1200rpm	Lead wire length	500mm + 20mm

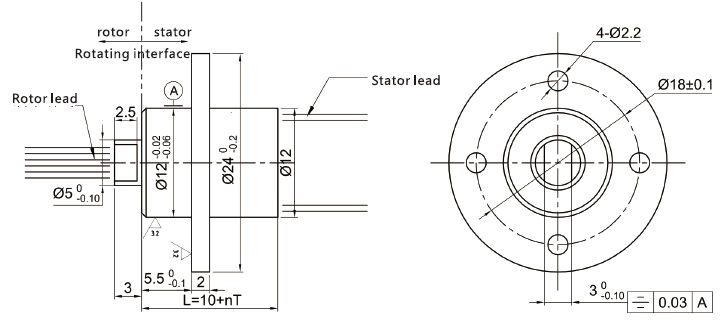

Outline Drawing of The Item

Application Filed

Our products are widely used in high-end automation equipment and various occasions that require rotating conduction, such asHD network monitoring systems, air traffic control, and camera technology,Optical fiber reels, unmanned vehicles, Satellite communication systems, medical treatment equipment, radar antennas, aerostat mobile platforms, ,submarine towed optical cables, wind energy, helicopters, optogenetics.

Our advantage

1） Product advantage: Optical fiber slip ring uses optical fiber as the data transmission medium to provide reliable transmission and the best solution for connecting signals and data in the rotating parts of the equipment. Ingiant fiber optic slip rings can be from single mode to 12 channels, and have unique advantages for transmitting high-frequency signals and high-speed digital signals. They can also be used in combination with electric slip rings, which are easy to install and form a transmission power, low-frequency signal and high-frequency signal. The organic combination system of the frequency signal.
2） Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
3） Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
