Ingiant slip ring with aviation plug at rator end for heavy equipment towers

Short Description:

Typical application:

Industrial machine machining centers, rotary tables, heavy equipment towers, cable reels, packaging equipment, magnetic clutches, process control equipment, rotation sensors, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, revolving doors, etc.;


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    DHK200-58

    Number of circuits

    58

    Working temperature

    “-40℃~+65℃”

    Rated current

    2A.5A.10A.15A.20A

    Working humidity

    <70%

    Rated voltage

    0~240 VAC/VDC

    Protection level

    IP54

    Insulation resistance

    ≥1000MΩ @500VDC

    Housing material

    Aluminum Alloy

    Insulation strength

    1500 VAC@50Hz,60s,2mA

    Electrical contact material

    Precious metal

    Dynamic resistance variation

    <10MΩ

    Lead wire specification

    Colored Teflon insulated & tinned stranded flexible wire

    Rotating speed

    0~600rpm

    Lead wire length

    500mm + 20mm

    All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

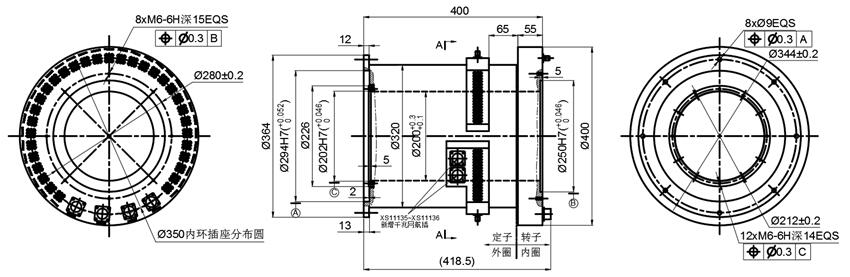

    Standard product outline drawing:

    QQ截图20230627145852

    The rotor has a slip ring with an aviation plug, which is convenient for loading and unloading, replacement and installation, saves the trouble of welding wires, and improves stability and reliability.

    • Rotor with aviation plug
    • Easy to maintain, easy to replace
    • IP51, IP65, IP68 optional
    • Advanced precious metal cluster brush type multi-point contact ensures reliable contact under extremely low friction
    • Commonly used in high-end applications



    Typical application:

    Industrial machine machining centers, rotary tables, heavy equipment towers, cable reels, packaging equipment, magnetic clutches, process control equipment, rotation sensors, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, revolving doors, etc.;

    QQ图片20230322163852

    Our Advantage

    1. Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance. Comprehensive quality management system, strict management in all aspects of design, manufacturing, testing, etc., to ensure the use of materials, coupled with high-precision imported equipment and high-tech technology to ensure, our products Performance and indicators are always at the forefront of similar products in the world.
    2. Company advantage: More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. Depending on strong R&D ability and close cooperation with well-know enterprises & research institutes, Ingiant could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s different requirements.
    3. Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.

    QQ截图20230322163935
