Ingiant small slip rings with hollow shaft 5mm 12 channels for test equipment

Short Description:

Typical uses for hollow shaft slip rings are as follows:

Rotary switches

Servo motors

Positioning valves

Wheel hub motors


Product Detail

Product Tags

DHK005-12

The main parameters

Number of circuits

12

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

Electrical Slip Ring Parameters

Rings

1-200 (or more)

Current

2A,5A,10A,20A,25A

Rated Voltage

0~600VDC/VAC

Max speed

15000RPM

Housing Material

Aluminum Alloy, engineering plastic, stainless steel, etc

Torque

0.02N.m;+0.01N.m/ 6rings

Working life

>80 million

Contact Material

Precious Material

Electrical Noise

<5mΩ

Contact resistance:

<5mΩ

Dielectric Strength

2500VAC@50Hz

Lead Wire

UL Teflon@Awg22,Awg16

Insulation Resistance

1000 MΩ / 500VDC

Lead Length

300mm (per required)

Working Temperature

-40℃~ 80℃

Protection Grade

IP51 – IP68

Operating Humidity

10% to 95% RH

Material

RoHs

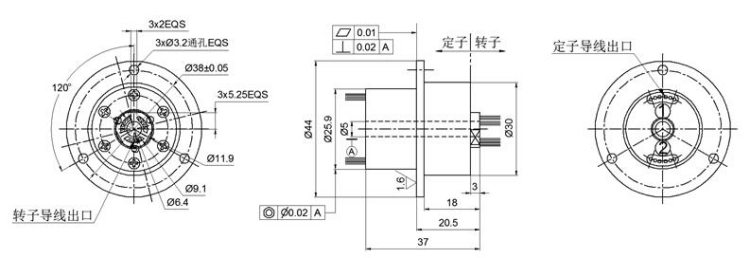

Standard product outline drawing:

DHK005_副本

Use of the hollow shaft slip rings

The hollow shaft slip rings are particularly well suited to round solid or hollow profiles of all kinds. Pipelines, plug-in axles or journals are typical installation locations for these modules. They can be used for power and data supply in a wide range of applications. Typical uses for hollow shaft slip rings are as follows:

  • Rotary switches
  • Servo motors
  • Positioning valves
  • Wheel hub motors

The special advantage of hollow shaft slip rings is their space-saving installation. The slip ring is simply slid onto a component that is installed anyway. Additional auxiliary constructions are not necessary for the installation of these modules.

QQ图片20230322163852

Our Advantage



Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.

Product advantage: With the encapsulated miniature slip rings, we offer you the ideal components for transmitting power and signal current to rotating components. Our comprehensive product range also has the right solution for your applications.

customised  advantage: The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value. We support our customers for customised solutions .

QQ截图20230322163935
