Ingiant Solid flange type slip ring can be customized with 80 channel

Short Description:

High-quality encapsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.


Product Detail

Product Tags

Specification:

DHS160-80

The main parameters

Number of circuits

80

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm



All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

Product drawing:

1

Description:

  • Cap type conductive slip ring is a series of conductive slip rings with circular flange attached to the shell. Cap type slip ring looks like a hat, compact design, small size, easy to install.  Mainly used to transmit weak control signals and weak current of small and medium-sized systems. Such as video, control, sensing, power, Ethernet.  Low torque, low loss and maintenance-free;  Low electrical noise 。
  • DHS series cap slip ring is widely used in CCTV, high-speed ball, cloud head, measuring instruments and other industries, usually called high-speed ball special slip ring, cloud head slip ring, cheap price, flexible configuration, in addition to the application of high-speed centrifuge slide ring high-speed position changing machine slide ring, high-speed turntable slide ring, tube camera, security special equipment slide ring,  Heating tube rotating conductive slip rings, welding equipment sliding rings, rotary door sliding rings, mechanical arm conductive slip rings, exhibition/display equipment, Marine facilities, circular knitting machines, resistance cutting machines, etc.

QQ图片20230322163852

Our advantage:

  1. Product advantage: High-quality encapsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.
  2. Company advantage: Provide OEM and ODM service, over 20 years of industry-related industry experience.To provide global customers with 360° rotation of various media (electricity, gas, vacuum, liquid, optical fiber, high frequency, etc.) through the series of high-performance standard slip ring products!

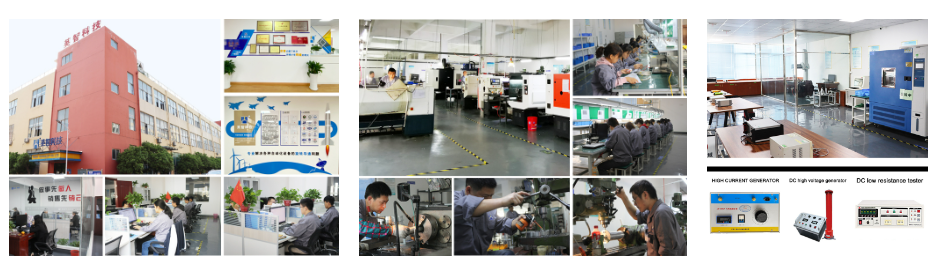

  3. Customized advantage: Advanced production equipment workshop, including mold, production assembly workshop, craft workshop. professional design & manufacturing team .

DHS043-34 产品详情页 (1)
