Ingiant Solid shaft 30mm series 3.0 USB slip ring for machine vision

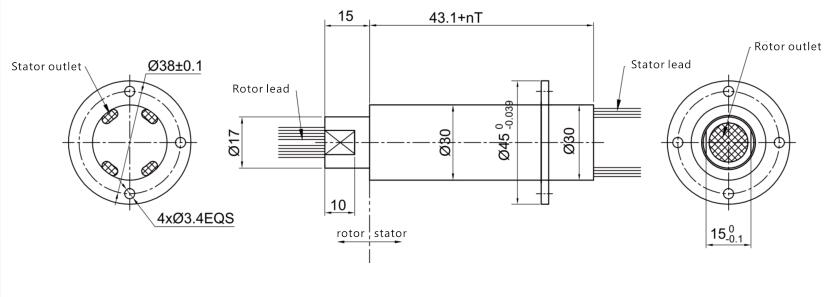

Product drawing:

3.0 USB slip ring-DHS030 series

Standard 1-3 USB signals, maximum 5 channels

USB slip ring is a slip ring that transmits USB signals. USB2.0 slip rings are widely used in various communication systems because USB interfaces are very common in high-definition videos and ultra-large storage devices. The new generation standard 3.0USB conductive slip ring has a theoretical transmission rate of up to 5Gbps.

Ingiant USB slip rings can be used to transmit USB1.0, USB2.0, USB3.0 data signals, and can mix electrical power channels and signal channels. They have stable transmission, no packet loss, no serial coding, small return loss, and small insertion loss. It provides a perfect technical solution for large-capacity and high-speed transmission between rotatingly connected system components. It has been used in machine vision, high-speed data acquisition and transmission, industrial cameras, digital TVs, VR and test turntables, etc. Areas requiring high-rate data transmission.

Features

• Plug and play USB interface connector
• Type A, Type B and micro connectors available
• Military-grade ring surface treatment process
• No crosstalk between power signals, compliant with EMC standards
• Stable transmission, no packet loss, low insertion loss

Our advantage:

1. Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
2. Company advantage:   Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system
3. Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
