Ingiant solid shaft Ethernet slip ring 44mm with 5A current/2A signal/1000M Ethernet signal

Short Description:

Product Detail

Product Tags

DHS044-39
The main parameters
Number of circuits	39	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

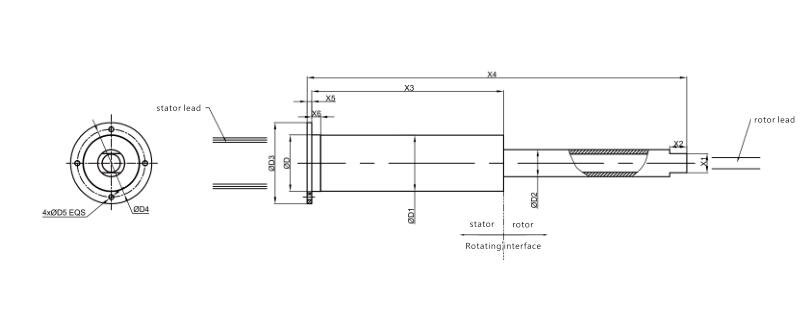

Standard product outline drawing:

Ethernet Slip Ring – DHS Series
Available for Custom, Run 100/1000M Ethernet Signal
DHS044-39 solid shaft Ethernet slip ring, outer diameter 44mm. Can integrate transmission of 5A current/2A signal/1000M Ethernet signal. Plug and play type with RJ45 connector. Ethernet slip ring components are reliable metal and gold-plated circuit connections, product housing is made of aluminum. The company supplies slip rings with the advantages of stable transmission, no packet loss, no serial code, small return loss, low insertion loss, etc.

Product Features

With advantages of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss, etc.
Fiber brush bundle contact structure ensures product lifespan
Stable transmission of 1 Gigabit Ethernet signal
Integrated structural design for easy installation
Protection level IP51-IP68 optional
Provide standard models and customizable
RJ45 male and female connectors are optional
Using high-quality Ethernet cables
Maintenance free

Typical applications
