Ingiant solid shaft HD-SDI slip ring diameter 75mm 49channels transmit video signal

Short Description:

What is HD-SDI slip ring?

HD-SDI slip rings are based on HD-SDI multimedia interfaces and are used for the rotational transmission of uncompressed audio and video signals. High-definition video slip rings include HDMI slip rings, SDI slip rings, 1080P conductive slip rings, etc., which are widely used in new technology fields such as radio and television, photography, video, and VR.


Product Detail

Product Tags

DHS075-49

The main parameters

Number of circuits

87

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

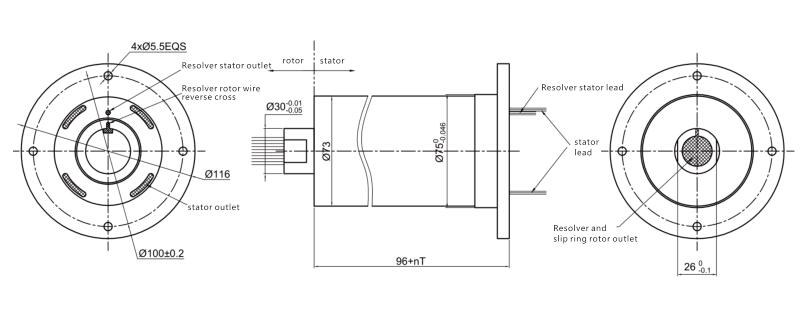

Standard product outline drawing:

DHS075-35

What is HD-SDI slip ring?

HD-SDI slip rings are based on HD-SDI multimedia interfaces and are used for the rotational transmission of uncompressed audio and video signals. High-definition video slip rings include HDMI slip rings, SDI slip rings, 1080P conductive slip rings, etc., which are widely used in new technology fields such as radio and television, photography, video, and VR.



HD-SDI slip ring

Customize various types of high-definition signals, standard DC-3GHz frequency, high-definition conductive slip ring supports HDMI/SDI/VGA signal transmission, up to 10.2Gbps bandwidth.

Features

  •  Contact gold to gold contact
  •  Support 1080P, 720P video signals
  •   Light weight, compact structure, small installation space requirements
  •  Stable performance, no packet loss and crosstalk, small insertion loss and large return loss
