Ingiant Solid shaft turntable slip ring outer diameter 42mm combination 34 channels current/signal

Short Description:

DHS042-34 turntable slip ring, outer diameter 42mm, combined power supply, Ethernet signal, load signal, turntable signal, etc.

Turntable slip rings refer to conductive slip rings specially designed for use on turntables. Turntable slip rings are generally used in relatively high-end fields, with strict requirements on product size, signal, and performance. They require slip ring manufacturers to have not only strong technical strength, but also strict requirements on product quality control and after-sales service.

Send email to us

Product Detail

Product Tags

DHS042-34
The main parameters
Number of circuits	34	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

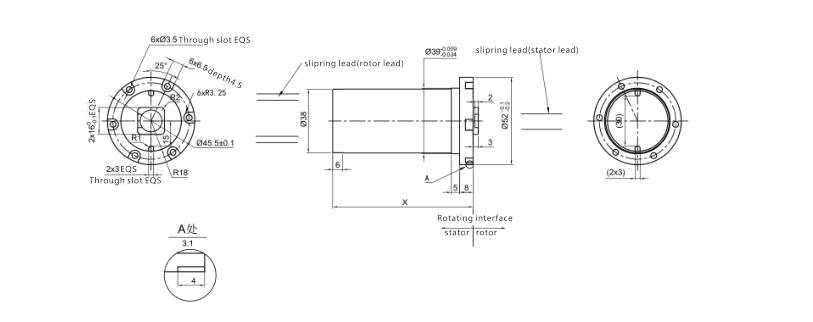

Standard product outline drawing:

DHS042-34 turntable slip ring, outer diameter 42mm, combined power supply, Ethernet signal, load signal, turntable signal, etc.

Product features of turntable slip ring:

From no hole to through hole 500mm optional; current 2A to 2000A optional
Can be mixed with high-frequency joints, fiber optic slip rings
Advanced cluster brush multi-point contact, long life, maintenance-free
360° continuous rotation to transmit power or data signals
Can mix and transmit multiple signals, can be customized according to customer requirements

Our advantage:

Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
Company advantage: Ingiant provides various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
