Ingiant Standard 50mm Through hole waterproof slip ring 26channels with IP65-IP68 for Port Machinery

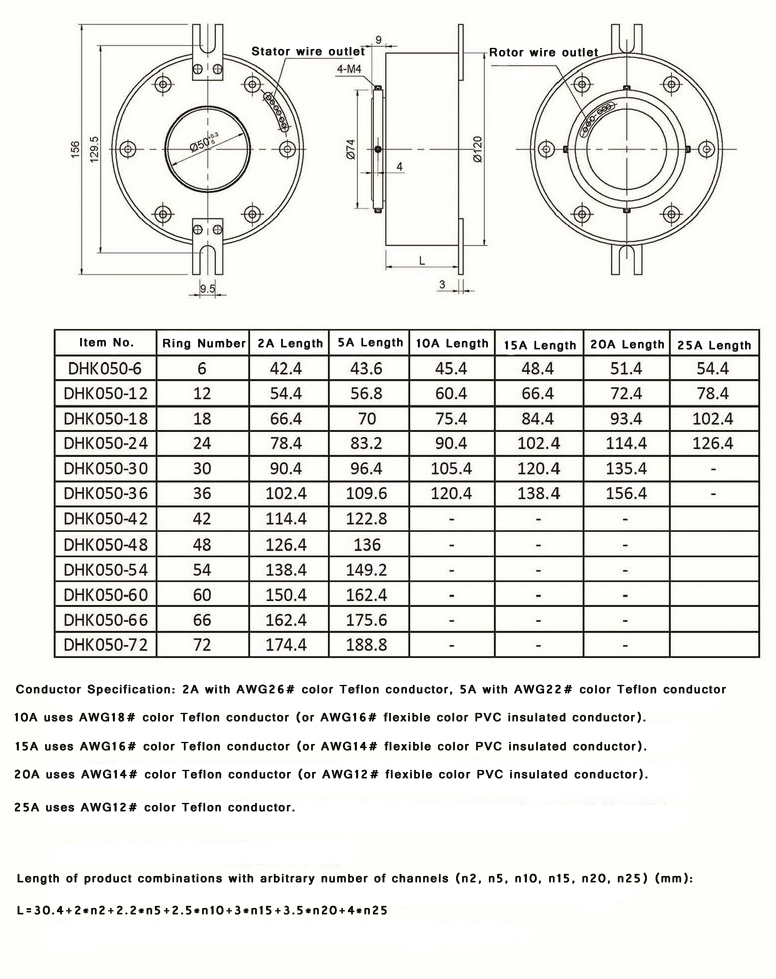

Standard product outline drawing:

Through hole waterproof slip ring – hole diameter 50mm series

DHK050F-26 through hole waterproof slip ring has a protection level of IP65 to IP68, designed specifically for waterproof and dustproof environments. Using high-quality precious metal bristles and patented design structure can effectively reduce interference between circuits, lower electrical noise, reduce torque, and have a long lifespan. The product has an inner diameter of 50mm and an outer diameter of 120mm, with a hole shaped external structure. It is used for rotating applications that require a through-hole of ≤ 50mm. The standard model supports 1-36 power rings (10A/ring) or 1-72 signal rings (0-5A/ring).

Product Features

• Maintenance free use
• Integrated structural design, easy to install
• Provide standardized series products with low procurement costs
• Anti corrosion stainless steel shell, suitable for underwater environment
• Multi contact design, long service life
• Support 1-96 loop circuits or signals (0~20A/loop)
• Up to IP68 protection level
• Patent waterproof technology, stable operation in 1500 meter deep sea environment, mainly used for ships and oil wells

Typical applications: Beer dispensers, filling machines, oil wells, ship machinery, port machinery, navigation equipment, lakes, shallow waters, and offshore oil platforms, etc

Our Advantage

1. Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance. Comprehensive quality management system, strict management in all aspects of design, manufacturing, testing, etc.
2. Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions.
3. Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
