Ingiant standard capsulated miniature slip rings with outer diameter 12mm 3A for power- and signal transmission

Short Description:

Capsulated Miniature Slip Rings for Power- and Signal Transmission

High-quality capsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.

Space-saving- allL-rounder-Capsulated Miniature Slip Rings

The perfect slip ring solutions for tight spaces and compact unit dimensions


Product Detail

Product Tags

DHS012-6-3A-002

The main parameters

Number of circuits

12

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

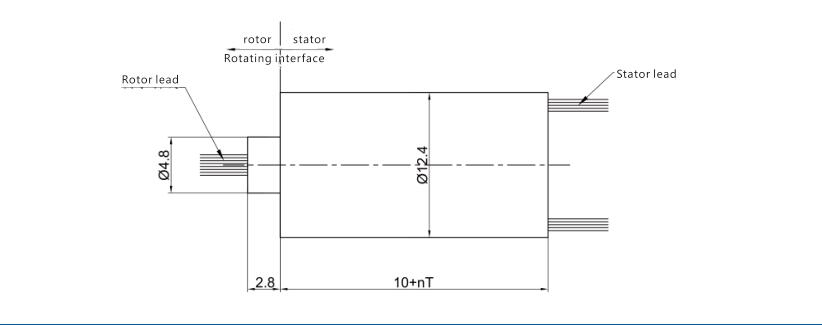

Product drawing:

DHS012-18-2A

Capsulated Miniature Slip Rings for Power- and Signal Transmission

High-quality capsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.

Space-saving- allL-rounder-Capsulated Miniature Slip Rings

The perfect slip ring solutions for tight spaces and compact unit dimensions



Feature:

  • Transmitting analog and data signals
  • Compatible with data bus protocol
  • Long life and maintenance-free
  • Easy to install
  • 360° continuous rotation transmits power and data signals

QQ图片20230322163852

Our advantage:

  1. Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
  2. Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions.
  3. Excellent after-sales and technical support service: 12 months guaranty, customized, accurate and timely service for customers in terms of pre-sales, production, after-sales. Best service for long term cooperation.

QQ截图20230322163935
