Ingiant Standard DHK025 series through hole conductive slip ring 42 channels 5A
|
DHK025-42-5A |
|||
|
The main parameters |
|||
| Number of circuits | 42 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

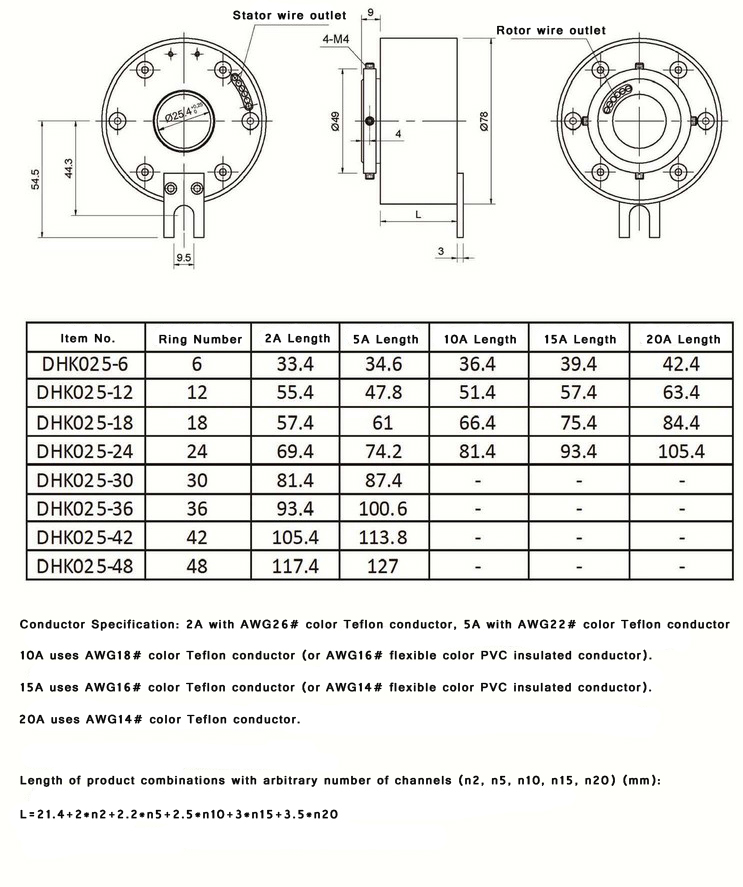

Standard product outline drawing:
Through hole conductive slip ring DHK025 series
DHK025-42-5A series through hole conductive slip ring, middle hole 25.4mm, outer diameter 78mm, suitable for rotating electromechanical systems with diameter less than 25.4mm, power ring. Signal ring 5A/ring, 42 rings, also called hollow shaft slip ring. The shell is made of aluminum alloy and can be made of special engineering plastics or stainless steel. As precision conductive slip rings, they are widely used in intelligent visual robots, packaging machines, filling machines, blanking machines, sampling machines, small amusement machines and other automation equipment. In order to stably transmit power or signals to electromechanical systems that require 360-degree rotation, it can also be designed in combination with air rotary joints, liquid rotary joints, fiber optic slip rings, etc. to form a multifunctional hybrid slip ring.
Features
- Multi-contact brush contact design, long service life
- Integrated structural design, easy to install
- Power ring. Signal ring 5A/ring, 42 rings
- IP 54 protection level, IP68 can be customized
- Can integrate multiple signals and be compatible with multiple data protocols
- Maintenance-free use
Typical application
- Automatic machinery Cable drum
- Robot/Rotation Sensor Display/Display Equipment
- Packaging machinery Industrial turntable
- Medical/Pharmaceutical Equipment Marking Machine
- Filling machinery CNC machine tools
Our Advantage
- 1）Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- 2）INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warrenty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
- 3) Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
