Ingiant standard DHS030 series Ethernet slip ring RJ45 Connector transmit current and Ethernet signal

Short Description:

Ethernet slip ring DHS030 series, outer diameter 30mm, can integrate and transmit 5A current/2A signal/1000M Ethernet signal, with RJ45 connector plug-and-play type.



Features

  • It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss.
  • Fiber brush bundle contact structure ensures product life
  • Stable transmission of 1-2 channels of Gigabit Ethernet signals
  • Integrated structural design for easy installation
  • Protection grade IP51-IP68 optional
  • Standard models available and customizable
  • RJ45 male and female connector optional
  • Use high-quality Ethernet cables
  • maintenance free


Product Detail

Product Tags

DHS030-8

The main parameters

Number of circuits

8

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

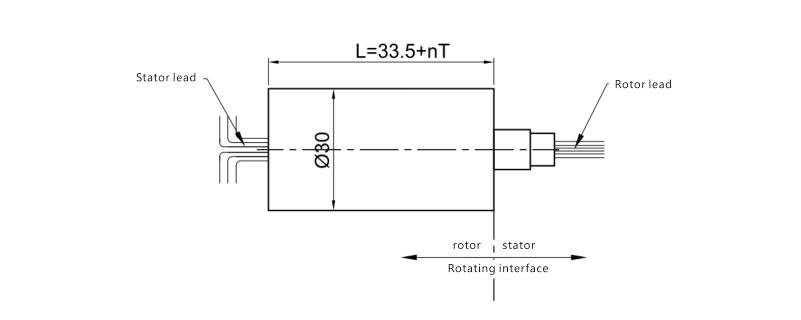

Product drawing:

DHS030-6

Ethernet slip ring DHS030 series, outer diameter 30mm, can integrate and transmit 5A current/2A signal/1000M Ethernet signal, with RJ45 connector plug-and-play type.

Ethernet slip ring allows Ethernet signals to be transmitted through a rotating interface. It can be called a network cable slip ring, a network slip ring, or an RJ45 slip ring. Ethernet slip rings transmit power and Ethernet signals from fixed structures to rotating structures through the contact between precious metal rings and brush wires. This type of signal slip ring can mix power and signals, and can also transmit multi-channel low-frequency signals and currents. Suitable for 10/100/1000 Base T transmission and equipped with RJ45 plug-and-play plug, optional M12, CAT5E, CAT6 type cables. Gigabit Ethernet slip rings are used in wind turbines, industrial robots, and radar antennas, among others.

Features

  • It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss.
  • Fiber brush bundle contact structure ensures product life
  • Stable transmission of 1-2 channels of Gigabit Ethernet signals
  • Integrated structural design for easy installation
  • Protection grade IP51-IP68 optional
  • Standard models available and customizable
  • RJ45 male and female connector optional
  • Use high-quality Ethernet cables
  • maintenance free

 QQ图片20230322163852

Our advantage:

  1. Product advantage: Transmit analog and digital signal;Adopts gold-to-gold contact to transmit signal;Able to integrate up to 135 channels;Module design, guarantees consistency of the products;Compact structure, small size;Adopt special soft wire ;Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
  2. Company advantage:   Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system
  3. Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
