Ingiant standard DHS075 series solid shaft slip ring172 channels flange installation

Short Description:

Standard DHS075 series solid shaft slip ring flange installation

DHS series solid shaft slip ring is a compact power transmission device that realizes signal and current transmission between two relatively rotating mechanisms. It adopts beam brush type multi-point contact to ensure reliable contact with extremely low friction. Can be customized according to customer needs. The current is optional from 2 amps to 2000 amps, which can fully meet your different transmission plans.


Product Detail

Product Tags

DHS075-172

The main parameters

Number of circuits

172

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

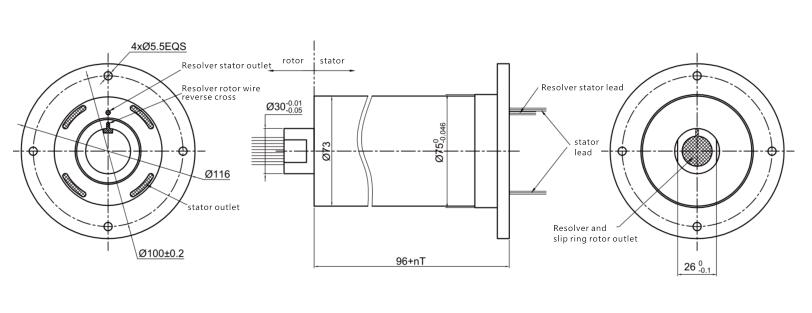

Product drawing:

DHS075-35

Standard DHS075 series solid shaft slip ring flange installation

DHS series solid shaft slip ring is a compact power transmission device that realizes signal and current transmission between two relatively rotating mechanisms. It adopts beam brush type multi-point contact to ensure reliable contact with extremely low friction. Can be customized according to customer needs. The current is optional from 2 amps to 2000 amps, which can fully meet your different transmission plans.

Feature:

  • Transmitting analog and data signals
  • Compatible with data bus protocol
  • Long life and maintenance-free
  • Easy to install
  • 360° continuous rotation transmits power and data signals

QQ图片20230322163852

Our advantage:

  1. Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
  2. Company advantage: Ingiant provides various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. As a high-end conductive slip ring manufacturer, the company not only provides high-quality standard products, but also relies on our technical advantages, focusing on providing high quality products to meet customers high requirements.
  3. Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.

QQ截图20230322163935
