Ingiant Standard hole diameter 12mm series through hole slip ring 12 channels 10A

Short Description:

Product Detail

Product Tags

DHK012-6-10A
The main parameters
Number of circuits	6	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

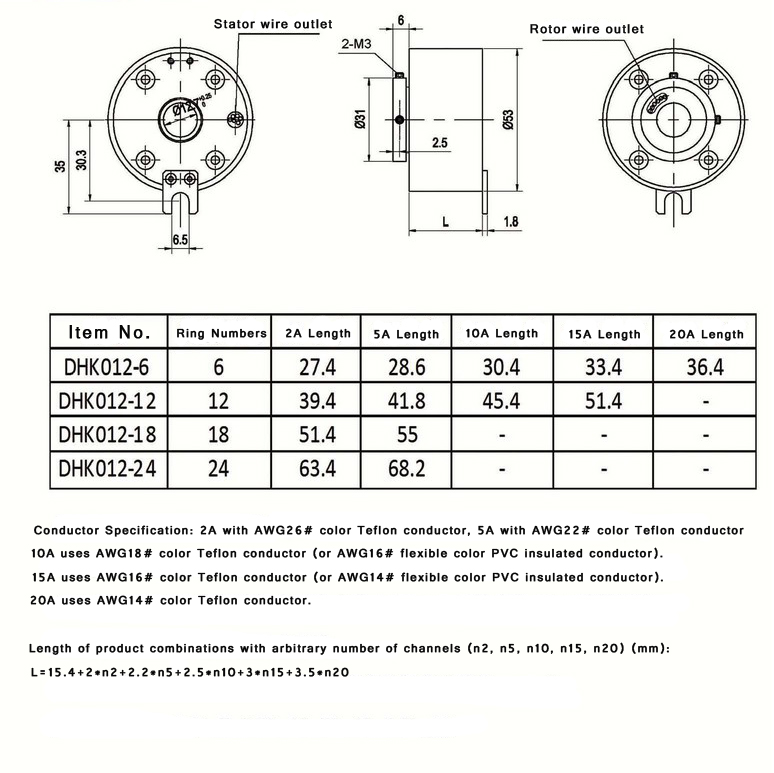

Standard product outline drawing:

DHK012-6-10A series through hole slip ring

Through-hole diameter 12mm (applicable to any outer diameter: 56mm; number of channels: 6, integrated precision conductive slip ring with all-aluminum alloy structure. Supports signal (2A), 10A power supply current, voltage 0~440VAC/240VDC, working voltage can be customized to 1000V; protection level can be customized to IP68.

Product Features

Multi-contact brush contact design, long service life
Integrated structure design, easy installation
6 channels, 10A/channel
IP 54 protection level, customizable IP68
Can integrate multiple signals, compatible with multiple data protocols
Maintenance-free use

Typical application

rotating platform
Packaging Machinery
cable reel
Drying and mixing equipment;
Test Equipment
Robotics and rotation sensors
Booth equipment
medical equipment

Our Advantage

Product advantage: continuous transmission of power, signals, weak current, high current, high voltage under 360 degree unrestrained rotations. Low torque, low electrical noise, low loss and easy maintenance as the main features.
Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
