Ingiant Standard hole diameter 38mm through hole slip ring 18 channels 10A for packing machine
|
DHK038-18-10A-003 |
|||
|
The main parameters |
|||
|
Number of circuits |
18 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

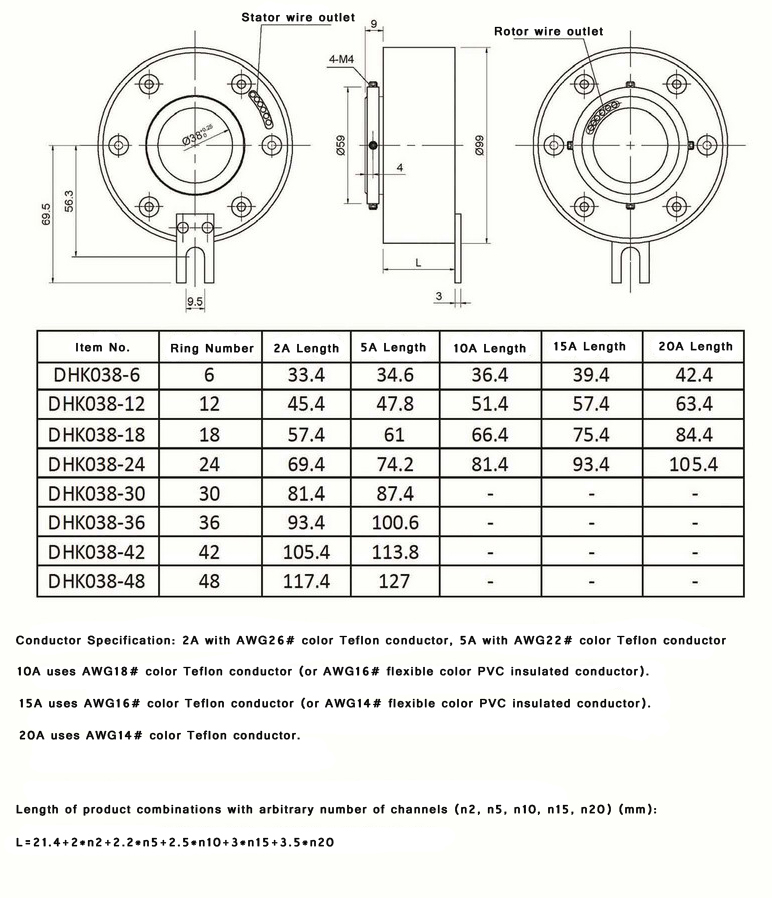

Standard product outline drawing:
Standard through hole slip ring DHK038 series
DHK038-18-10A through hole slip ring with through hole 38mm, OD99mm, suitable for rotating application which requires a through hole ≤38mm.Standard model supports 1-24 power rings(0-20A/ring) or 1-48 signal rings(0~5A/ring). Through hole slip ring fully meets the continuous transmission of power, signals, weak current, high current, and high voltage under 360 degree unrestricted rotation. The main characteristics are low torque, low electrical noise, low loss, and easy maintenance.
Features
- Advanced multi-point contact brush technology ensures reliable contact and low friction
- Electricity, data, and signals can be combined in a rotating system without interference
- Integrated structure design for easy installation
- Standard model supports 1-24 power rings(0-15A/ring) or 1-48 signal rings(0~5A/ring)
- IP 51 (IP54-IP68 can be customized)
- Both the data bus agreement compatible
- Free maintenance
Typical applications
Industrial Machinery – Combined machining center machine tools, rotary indexing tables; Heavy equipment turrets, cable reels, test equipment; Packaging machines, stackers, magnetic clutches, process equipment; Rotary sensors, emergency lighting, robotics; Exhibition/display equipment , medical equipment.
Our Advantage
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
