Ingiant Standard hole diameter 38mm through hole slip ring 6 channels 20A

Short Description:

Standard through hole slip ring DHK038 series



DHK038-6-20A series is an integral precision conductive slip ring with an aperture of 38.1mm and an outer diameter of 99mm. It is mainly used for continuous transmission of power and signals under 360° continuous rotation; it uses advanced fiber brush technology; there are multiple slip rings on each circuit. Contact points, low contact pressure, low noise, low contact wear; extremely long working life; standardized & modular design; also provide customized solutions;


Product Detail

Product Tags

DHK038-6-20A-002

The main parameters

Number of circuits

6

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

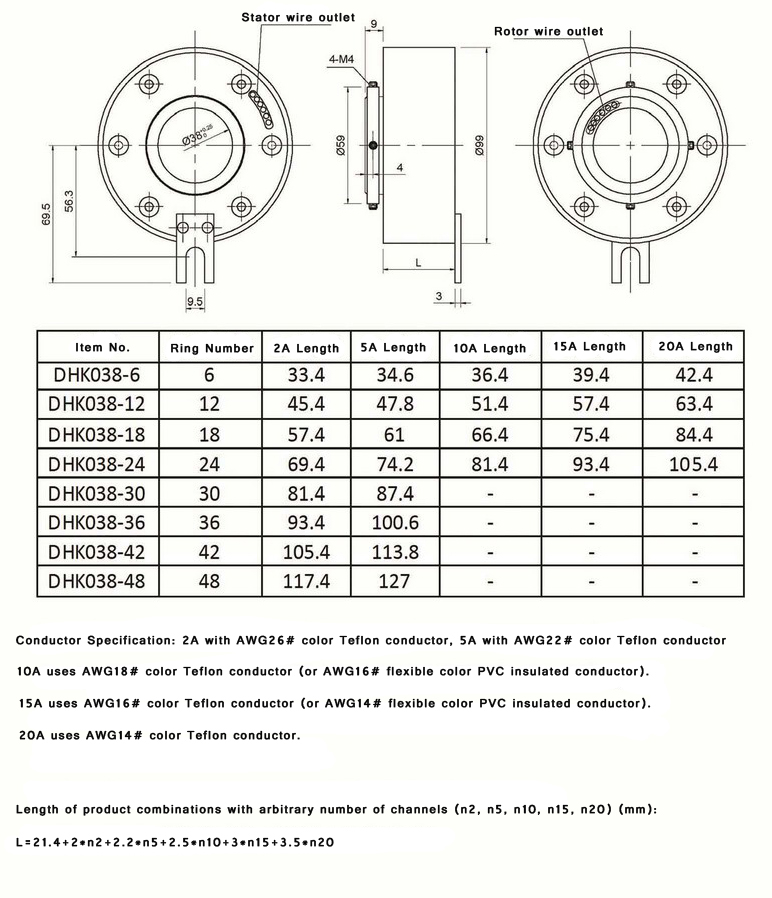

Standard product outline drawing:

DHK038

Standard through hole slip ring DHK038 series

DHK038-6-20A series is an integral precision conductive slip ring with an aperture of 38.1mm and an outer diameter of 99mm. It is mainly used for continuous transmission of power and signals under 360° continuous rotation; it uses advanced fiber brush technology; there are multiple slip rings on each circuit. Contact points, low contact pressure, low noise, low contact wear; extremely long working life; standardized & modular design; also provide customized solutions;

Typical applications

Industrial Machinery – Combined machining center machine tools, rotary indexing tables; Heavy equipment turrets, cable reels, test equipment; Packaging machines, stackers, magnetic clutches, process equipment; Rotary sensors, emergency lighting, robotics; Exhibition/display equipment , medical equipment

QQ图片20230322163852

Our Advantage

  1. Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
  2. Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
  3. Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.

QQ截图20230322163935
