Ingiant standard hole diameter 80mm through hole slip ring 28 channels

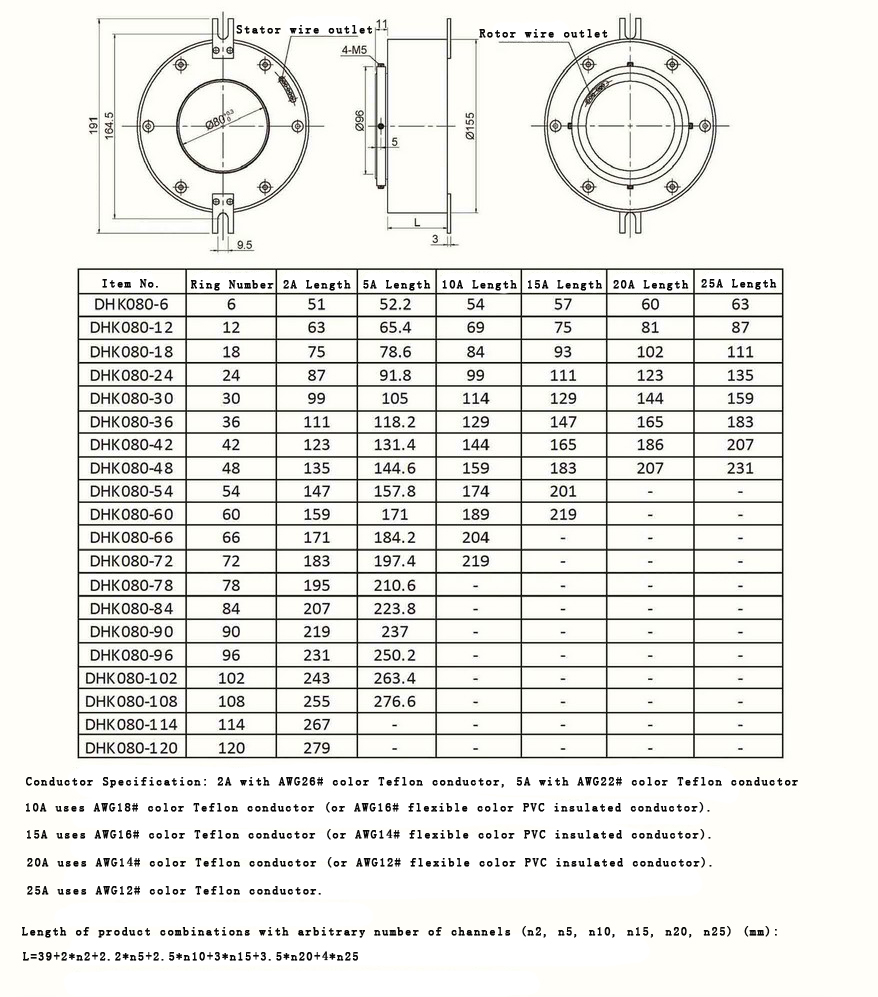

Standard product outline drawing:

Through hole slip ring DHK080-80

Customization supported, standardized products with inner diameter of 3-400mm, 2-1000A

DHK080-80 series through hole conductive slip rings, Inner hole 80mm, outer diameter 155mm, suitable for rotating electromechanical systems with a diameter less than 80mm, standard power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings, used to transmit power or signals in 360-degree rotating systems.

Features

• Multi-contact brush contact design, long service life
• Integrated structural design, easy to install
• IP 54 protection level, IP68 can be customized
• Can integrate multiple signals and be compatible with multiple data protocols
• Maintenance-free use

Typical applications

Medical equipment, CNC turntables, CNC machining centers, automation equipment, robotic arms, cable drums, cable reels, packaging machinery, filling equipment, wind turbines, etc.

Our Advantage

1. Product advantage: The brush wires used are made of precious metal materials such as silver alloy and gold alloy, and the overall service life of the conductive slip ring is increased through advanced fiber brush bundle contacts.
2. Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
3. Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
