Ingiant standard miniature capsule slip ring 6 channels 2A maintenance free

Short Description:

Miniature capsule slip ring

Mainly used to transmit precision signals and weak currents; it has the main features of low torque, low loss, low electrical noise, and maintenance-free; the hat-type slip ring is named after its appearance like a hat and the shell is equipped with a round flange. It has a compact design , small size, easy to install, suitable for small and medium-sized systems with small installation space, such as: security monitoring, photography, robots, test instruments, turntables and automation equipment.


Product Detail

Product Tags

DHS012-6-2A

The main parameters

Number of circuits

6

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

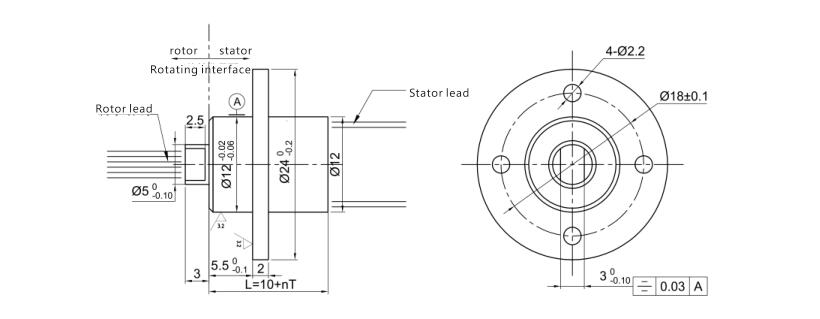

Product drawing:

DHS012-6-1A

Miniature capsule slip ring

Mainly used to transmit precision signals and weak currents; it has the main features of low torque, low loss, low electrical noise, and maintenance-free; the hat-type slip ring is named after its appearance like a hat and the shell is equipped with a round flange. It has a compact design , small size, easy to install, suitable for small and medium-sized systems with small installation space, such as: security monitoring, photography, robots, test instruments, turntables and automation equipment.



Features

  • Unique contact design provides longer life and maintenance-free stable operation (no lubricant required)
  • Minimal volume meets the most demanding space requirements
  • Diversified appearance to support more installation requirements
  • Support signal, power and their mixed transmission
  • Precision components to meet ultra-long life requirements
  • Can meet the requirements widely used in current industrial fields



Typical applications

  1. Industrial machines: machining centers, winding machines, end-face processing machines
  2. Rotary workbench: battery machinery, filling machine, bottle blowing machine, rotary printing machine
  3. Cable drum: port machinery, heavy-duty boom, construction machinery, tower
  4. Test equipment: centrifugal test bench, separator
  5. Robots: packaging equipment, stackers, process control equipment, emergency lighting equipment
  6. Exhibition/display equipment: car booths, revolving doors, product booths, revolving restaurants
  7. Medical equipment: shadowless surgical light

QQ图片20230322163852

Our advantage:

  1. Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
  2. Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions.
  3. Excellent after-sales and technical support service: 12 months guaranty, customized, accurate and timely service for customers in terms of pre-sales, production, after-sales. Best service for long term cooperation.

QQ截图20230322163935
