Ingiant Standard model DHS025 series solid shaft Ethernet slip rings Industrial Ethernet slip rings

Short Description:

Ethernet slip ring DHS025 series, outer diameter 25mm, can integrate and transmit 5A current/2A signal/1000M Ethernet signal, with RJ45 connector plug-and-play type.

Power and data transmission: secure transmission of 100Mbit/s / 1000Mbit / Gigabit Ethernet, PROFINET, SERCOS III, POWERLINK, EtherCAT, MECHATROLINK-III and other protocols.

Send email to us

Product Detail

Product Tags

DHS025-29-002
The main parameters
Number of circuits	29	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

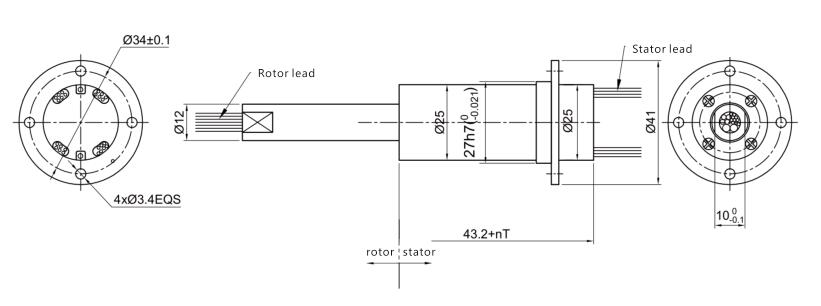

Product drawing:

Ethernet slip ring DHS025 series, outer diameter 25mm, can integrate and transmit 5A current/2A signal/1000M Ethernet signal, with RJ45 connector plug-and-play type.

Power and data transmission: secure transmission of 100Mbit/s / 1000Mbit / Gigabit Ethernet, PROFINET, SERCOS III, POWERLINK, EtherCAT, MECHATROLINK-III and other protocols.

Features

It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss.
Fiber brush bundle contact structure ensures product life
Stable transmission of 100M and Gigabit Ethernet signals
Integrated structural design for easy installation
Protection grade IP51-IP68 optional
Standard models available and customizable
RJ45 male and female connector optional
Use high-quality Ethernet cables
Maintenance-free

Typical applications

Small Network System
Video Surveillance System
Stage Control System
Industrial automation control
Various network cables and RJ45 interface transmission

Our advantage:

Product advantage: With the encapsulated miniature slip rings, we offer you the ideal components for transmitting power and signal current to rotating components. Our comprehensive product range also has the right solution for your applications.
Company advantage: Transmission technology for complex industrial and safety-relevant applications form the core of our product range. All products can be individually adapted to the applications in order to offer you added value. Premium engineering – that is our claim for every single product we manufacture. We would like to convince you of this.
customised advantage: The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value. We support our customers for customised solutions .
