Ingiant standard precision conductive through hole slip ring hole diameter 80mm 38channels

Short Description:

DHK080 series through hole slip ring has a through hole diameter of 80mm (applicable to any rotating device with a hole diameter ≤80mm), an outer diameter of 155mm, and the housing material can be plastic, aluminum alloy or stainless steel. It is a precision conductive slip ring with an integral structure. DHK080 series slip rings can stably transmit 10A current (magnification * 10A) or 2A signal.


Product Detail

Product Tags

DHK080-38

The main parameters

Number of circuits 38 Working temperature “-40℃~+65℃”
Rated current 2A.5A.10A.15A.20A Working humidity <70%
Rated voltage 0~240 VAC/VDC Protection level IP54
Insulation resistance ≥1000MΩ @500VDC Housing material Aluminum Alloy
Insulation strength 1500 VAC@50Hz,60s,2mA Electrical contact material Precious metal
Dynamic resistance variation <10MΩ Lead wire specification Colored Teflon insulated & tinned stranded flexible wire
Rotating speed 0~600rpm Lead wire length 500mm + 20mm

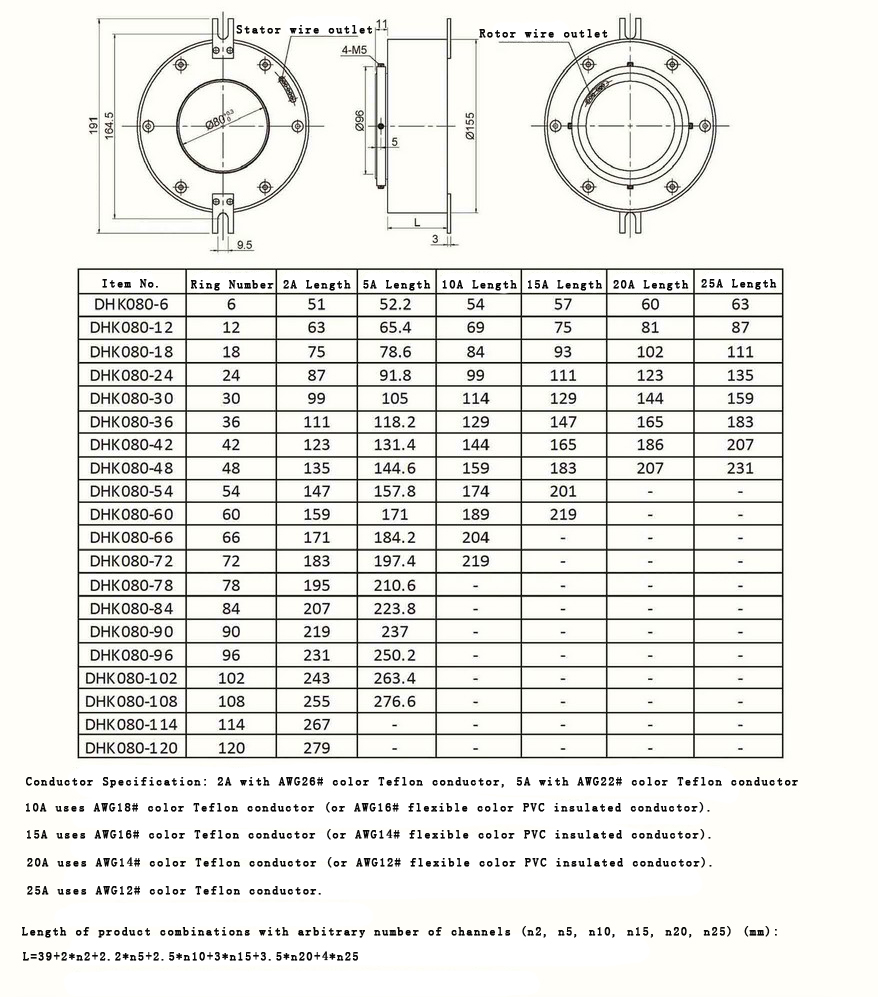

Standard product outline drawing:

DHK080

      DHK080 series through hole slip ring has a through hole diameter of 80mm (applicable to any rotating device with a hole diameter ≤80mm), an outer diameter of 155mm, and the housing material can be plastic, aluminum alloy or stainless steel. It is a precision conductive slip ring with an integral structure. DHK080 series slip rings can stably transmit 10A current (magnification * 10A) or 2A signal.



Features:

  •   It adopts advanced precious metal cluster brush type multi-point contact to ensure reliable contact under extremely low friction;
  •   It can stably transmit 1~108 currents/signals;
  •   A variety of standard specifications can be customized upon request;
  •   It supports mixed transmission of signals and power, and can Mixed transmission of video, data and other signals;
  •   Integrated structural design, easy installation.



Application fields:

Amusement park equipment, medical equipment, textile industry equipment, mining engineering machinery, silicone product production equipment, plastic product production equipment, carousel amusement equipment, automated production equipment, pearl cotton (EPE) polyethylene foam plastic machinery and equipment, Industrial robots, educational simulation equipment, engineering testing instruments, metal surface finishing equipment, metal mirror processing equipment, automatic polishing equipment, robotic arms.
