Ingiant standard through hole slip ring hole diameter 25mm with 3 channels 10A power and 5channels 2A signals
|
DHK025-8-002 |
|||
|
The main parameters |
|||
| Number of circuits | 8 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

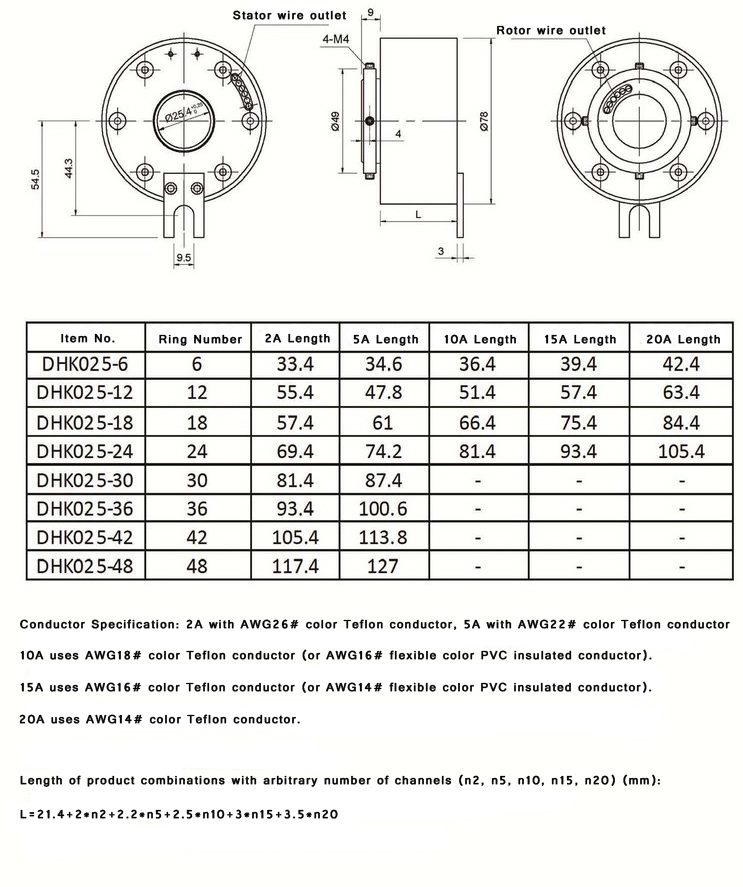

Standard product outline drawing:
Through hole slip ring – standard inner hole 25mm series
Support customization, standardized product inner diameter 3-500mm, current 2-1000A
DHK025-8-002 series through-hole conductive slip ring, with a center hole of 25mm, is suitable for rotating electromechanical systems with a diameter less than 25mm. The standard power ring is 10A/ring, 3 rings, and the signal ring is 2A/ring, 5 rings. It is also called a hollow shaft slip ring. The shell is made of special engineering plastics, and aluminum alloy or stainless steel can be selected. For the stable transmission of power or signals for electromechanical systems that require 360-degree rotation, it can also be combined with gas rotary joints, liquid rotary joints, fiber optic slip rings, etc. to form a multifunctional hybrid slip ring.
Product features
- Multi-contact brush contact design, long service life
- Integrated structure design, easy installation
- IP 51 protection level, customizable IP68
- Can integrate multiple signals, compatible with multiple data protocols
- Can integrate power, signals and data in a rotating transmission system without interference
- Transmit temperature control signals and thermocouple signals at the same time
- Fiber brush bundle process ensures reliable contact and low friction coefficient
- Maintenance-free use
Typical applications:
Intelligent visual robots, packaging machines, filling machines, feeders, samplers, small amusement machines and other automation equipment.
