Ingiant Standard through hole slip ring inner diameter 70mm with 20 channels 1A power

Short Description:

Through Hole Slip Rings – Standard ID 70mm Series

Available for Custom, Standard ID 3-500 mm, Current 2-1000A

DHK070-20-1A Series standard through hole slip ring with through hole 70mm, OD 145mm, suitable for rotating application which requires a through hole ≤70mm. supports 20 power channels(1A/channel). Supports mixed transmission of signals and power, and can customize the number of circuits and current and voltage based on standard models. Through hole slip ring totally meets with continuous transmission of power, signals, weak current, high current, and high voltage under 360-degree unrestrained rotations. Low torque, low electrical noise, low loss, and easy maintenance as the main features.

Send email to us

Product Detail

Product Tags

DHK070-20-1A
Main Parameters
Number of circuits	20	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

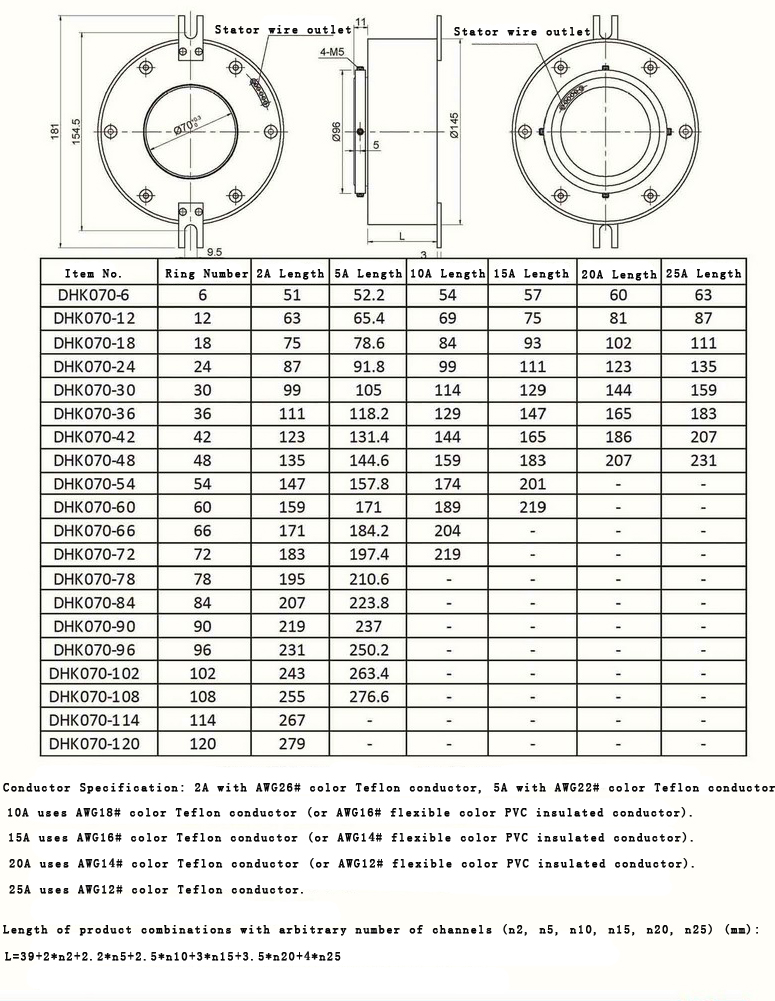

Standard product outline drawing:

Through Hole Slip Rings – Standard ID 70mm Series
Available for Custom, Standard ID 3-500 mm, Current 2-1000A
DHK070-20-1A Series standard through hole slip ring with through hole 70mm, OD 145mm, suitable for rotating application which requires a through hole ≤70mm. supports 20 power channels(1A/channel). Supports mixed transmission of signals and power, and can customize the number of circuits and current and voltage based on standard models. Through hole slip ring totally meets with continuous transmission of power, signals, weak current, high current, and high voltage under 360-degree unrestrained rotations. Low torque, low electrical noise, low loss, and easy maintenance as the main features.

Features

Multi-point brush contact material ensures long life
Integrated structure design, easy installation
20 channels 1A each
IP 54 (customizable IP65-IP68)
Compatible with two data bus protocols
Free maintenance

Typical applications:
Radar, security equipment, entertainment equipment, various robots, manipulators, various airships, various wind power equipment, bottle blowing machines, light inspection machines, various turntables, amusement equipment, vehicle-mounted satellite antennas, ship-mounted satellite wires, cable reels, window cleaning equipment, revolving tables, revolving stages, revolving screens, revolving restaurants, electric engineering machinery, etc.
