Ingiant Stator flange slip ring out diameter 48mm with 8 channels power and 10 channels signal

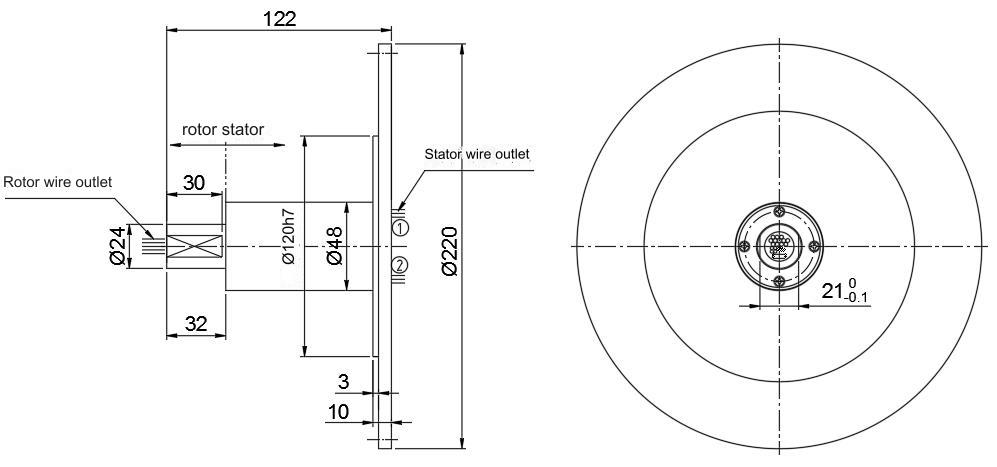

Standard product outline drawing:

Stator flange slip ring     Solid shaft stator flange Outer diameter: 48mm

DHS048-18 series stator flange slip ring Outer diameter is 48mm with connecting flange, a general term for a series of slip rings Solid slip ring No through hole in the center Suitable for end face installation. The contact material is made of precious metal + super-hard gold plating, with small torque, stable operation, long life, small resistance fluctuation, small contact resistance, and excellent transmission performance. It can achieve more channels and larger currents.It is usually used to customize various sensitive signals or encoder signals.

Typical applications include automation equipment, work turntables, camera pan/tilts, robots, etc.

Our advantage:

• Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
• Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
• Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
