Ingiant through bore slip ring for industrial machines

Short Description:

Application filed: Our slip rings are widely used in robotics, packaging machines fields, industrial machining center, Capping machines,Control systems,Medical equipment and systems,Packaging machines,Robotics,CCTV cameras and systems. Mechanical handling,Lifting equipment and cable reelers,rotary table, heavy equipment tower or cable reel, laboratory equiment.


Product Detail

Product Tags

Specification

DHK070-24

The main parameters

Number of circuits

24

Working temperature

“-40℃~+65℃"

Rated current

2A~100A, can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

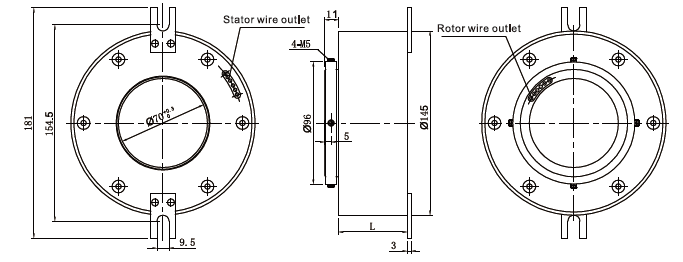

Product outline drawing

DHK070 drawing

Application Filed

Robotics, packaging machines fields, industrial machining center, Capping machines,Control systems,Medical equipment and systems,Packaging machines,Robotics,CCTV cameras and systems. Mechanical handling,Lifting equipment and cable reelers,rotary table, heavy equipment tower or cable reel, laboratory equiment.

product-description2
product-description3
product-description4

Our advantage

1) Product advantage: Light in weight and compact in size, easy to install. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals.
2) Company advantage: The R&D team of Ingiant has strong research and development strength, rich experience, unique design concept, advanced testing technology, as well as years of technical accumulation and cooperation and absorption of foreign advanced technology, making our technology always maintain the international leading level and lead the industry. The company has provided various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. The mature and perfect solutions and reliable quality have been highly recognized in the industry.
3) INGIANT adheres to the business philosophy of "customer-centered, quality-based, innovation-driven", seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warrenty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.

Factory Scene

product-description5
product-description6
product-description7
