Ingiant through bore slip ring for capping machines

Short Description:

Application filed: Our products are widely used inPackaging machines,Robotics,CCTV cameras and systems, Video systems,Capping machines,Control systems,Medical equipment and systems,Mechanical handling,Lifting equipment and cable reelers,Hazardous area equipment,Satellite assemblies,Wind tunnels,Sub sea applications,Remote operated vehicales


Product Detail

Product Tags

Specification

DHK060-60

The main parameters

Number of circuits

60

Working temperature

“-40℃~+65℃"

Rated current

2A~100A, can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

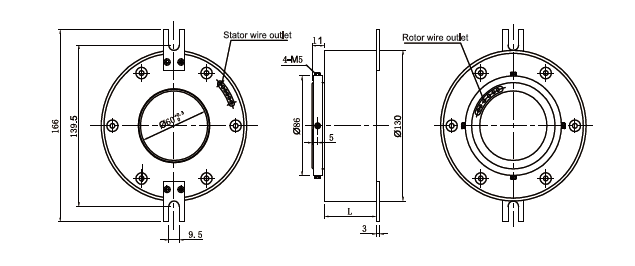

Product outline drawing



DHK060 drawing

Application Filed

Application filed: Our products are widely used inPackaging machines,Robotics,CCTV cameras and systems, Video systems,Capping machines,Control systems,Medical equipment and systems,Mechanical handling,Lifting equipment and cable reelers,Hazardous area equipment,Satellite assemblies,Wind tunnels,Sub sea applications,Remote operated vehicales

product-description2
product-description3
product-description4

Our advantage

1) Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
2) Company advantage: Ingiant provides various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. As a high-end conductive slip ring manufacturer, the company not only provides high-quality standard products, but also relies on our technical advantages, focusing on providing high quality products to meet customers high requirements.

3) Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
