Ingiant Through Bore Slip Ring For Video Systems
Specification
DHS030-25 |
|||
The main parameters |
|||
Number of circuits | 25 | Working temperature | “-40℃~+65℃" |
Rated current | Can be customized | Working humidity | <70% |
Rated voltage | 0~240 VAC/VDC | Protection level | IP51 |
Insulation resistance | ≥1000MΩ @500VDC | Housing material | Stainless steel |
Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
Dynamic resistance variation | <10MΩ | Lead wire specification | FF4-2Q-0.35mm, RG316 coaxial cable |
Rotating speed | 0~300rpm | Lead wire length | 500mm + 15mm |

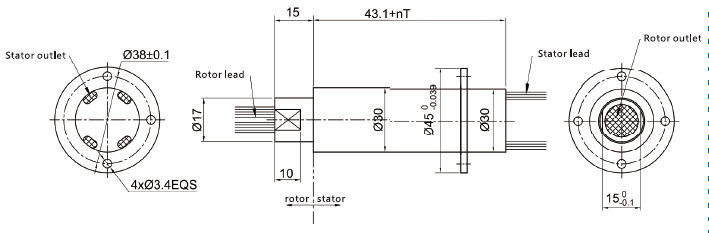

Outline Drawing of This Item
Application Filed
Ingiant slip rings are widely applied high-end automation equipment and various occasions that require rotating conduction, such as radar, missiles, packaging machines fields, industrial machining center, rotary table, heavy equipment tower, cable reel, laboratory equiment,wind power generator, turntables, robots, engineering machinery, mining equipment, port machinery and other fields.
![product-description2](http://www.ingiant-slipring.com/uploads/product-description2.jpg)
![product-description3](http://www.ingiant-slipring.com/uploads/product-description3.jpg)
![product-description4](http://www.ingiant-slipring.com/uploads/product-description4.jpg)
Our advantage
1. Product advantage: High quality, Cost effective,IP protection rated, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Suitable for extreme environments, Explosion proof units, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
2. Company advantage: Ingiant provides reliable and durable fluid sealing solutions for today's high-tech military and defense applications. A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. Also called a rotary electrical joint, to enable high speed data transmission under EMI sensitive environments, we develop a special line of slip rings. There are over 11,000 standard slip rings for you to choose from. If you can’t find a match, you can always contact us for help. Ingiant could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s different requirements.
3. Excellent after-sales and technical support service: by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products. Moreover, Ingiant provides customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
