Ingiant Through hole conductive slip ring hole diameter 20mm with 3channels 10A power

Short Description:

Through hole conductive slip ring DHK020-3-10A
DHK020-3-10A series through hole conductive slip ring, with a hole diameter of 20mm and an outer diameter of 78mm, is suitable for rotating electromechanical systems with a diameter less than 20mm. The standard power ring is 10A/ring, with a maximum of 24 rings, and the signal ring is 5A/ring, with a maximum of 48 rings. The shell is made of special engineering plastics, and aluminum alloy or stainless steel can be selected. As a precision conductive slip ring, it is mostly used in various small automation equipment, such as dispensing machines, welding machines, die-cutting machines, wrap-around packaging machines, etc.

Send email to us

Product Detail

Product Tags

DHK020-3-10A
The main parameters
Number of circuits	3	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

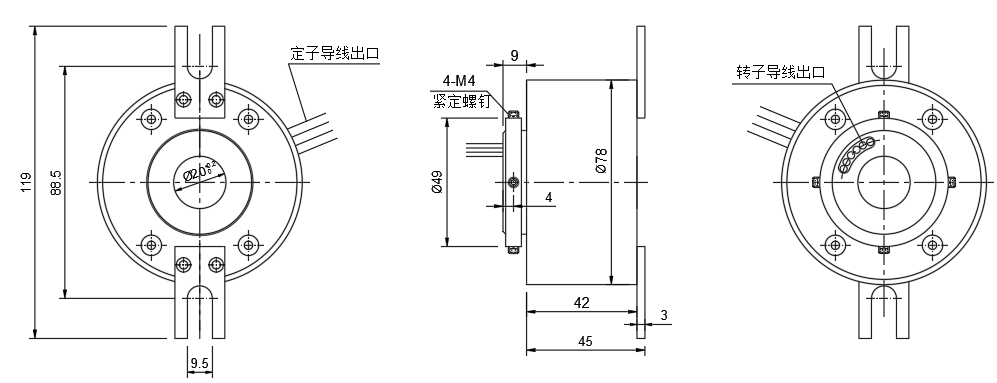

Standard product outline drawing:

Through hole conductive slip ring DHK020-3-10A
DHK020-3-10A series through hole conductive slip ring, with a hole diameter of 20mm and an outer diameter of 78mm, is suitable for rotating electromechanical systems with a diameter less than 20mm. The standard power ring is 10A/ring, with a maximum of 24 rings, and the signal ring is 5A/ring, with a maximum of 48 rings. The shell is made of special engineering plastics, and aluminum alloy or stainless steel can be selected. As a precision conductive slip ring, it is mostly used in various small automation equipment, such as dispensing machines, welding machines, die-cutting machines, wrap-around packaging machines, etc.

Product features

Multi-contact brush contact design, long service life
Integrated structure design, easy installation
3channels power ring 10A/channel
IP 51 protection level, customizable IP68
Can integrate multiple signals, compatible with multiple data protocols
Maintenance-free use

Typical applications

Automatic machinery
Cable drums
Robots/rotary sensors
Display/exhibition equipment
Packaging machinery
Industrial turntables
Medical/pharmaceutical equipment
Marking machines
Filling machinery
CNC machine tools

Our Advantage

Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
