Ingiant through hole Ethernet slip ring 1000M Ethernet signals inner diameter 75mm 112 channels

Short Description:



1000M Ethernet slip ring

DHK075-112 is a through-hole Ethernet slip ring with an inner diameter of 75mm. It can be used to install rotating systems with shaft diameter less than 75mm. Gigabit Ethernet slip rings have high-speed transmission characteristics, provide communication bandwidth up to 1Gbps, are compatible with traditional Ethernet technical specifications, are cost-effective, easy to unified management, and convenient for iterative upgrades.

Ethernet slip rings are mostly used in high-definition video surveillance systems, transmitting high-definition video signals for dome cameras and PTZ pan-tilt cameras, and providing effective solutions for 360-degree rotating security monitoring.


Product Detail

Product Tags

DHK075-112

The main parameters

Number of circuits

112

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

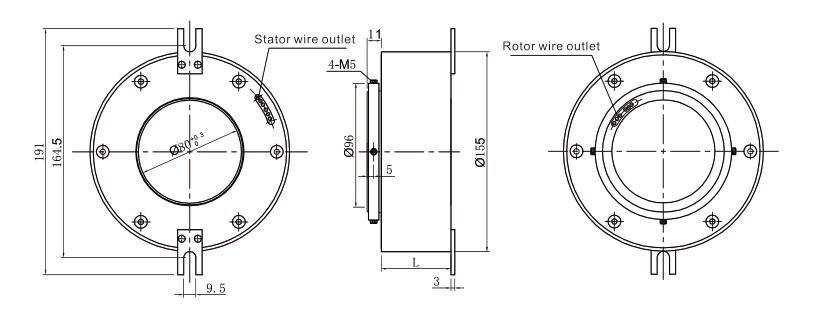

Standard product outline drawing:

DHK080



1000M Ethernet slip ring

DHK075-112 is a through-hole Ethernet slip ring with an inner diameter of 75mm. It can be used to install rotating systems with shaft diameter less than 75mm. Gigabit Ethernet slip rings have high-speed transmission characteristics, provide communication bandwidth up to 1Gbps, are compatible with traditional Ethernet technical specifications, are cost-effective, easy to unified management, and convenient for iterative upgrades.

Ethernet slip rings are mostly used in high-definition video surveillance systems, transmitting high-definition video signals for dome cameras and PTZ pan-tilt cameras, and providing effective solutions for 360-degree rotating security monitoring.



Features

  • Stable transmission of Gigabit Ethernet signals
  • The contact part of the brush is plated with rare precious metals and has a long service life.
  • Plug and play RJ45 interface
  • Dedicated Ethernet cable
  • Easy to install
  • Maintenance-free use
  • Stable transmission, no packet loss, no serial coding, large return loss, low insertion loss



Typical applications

  • Small network system
  • Video surveillance system
  • Stage control system
  • Industrial automation control
  • Various types of network cables and RJ45 interface transmission
