Ingiant through hole Ethernet slip ring ID 35mm transmission 100M Ethernet signal for HD video surveillance systems

Short Description:

Ethernet slip ring:Through hole slip ring series
Accept customization, transmit 100/1000M Ethernet signal
DHK035-9-002 is a through hole Ethernet slip ring with an inner diameter of 35mm and an outer diameter of 99mm. Ethernet slip ring is specially designed for 250MHz frequency signal and is used to transmit 100M/1000M Ethernet signal. It has the advantages of stable transmission, no packet loss, no string code, small return loss, small insertion loss, strong anti-interference ability, and support for POE.

Product features

Stable transmission of 100M Ethernet signal
The brush contact part is plated with rare precious metals, which has a long service life
Plug-and-play RJ45 interface
Dedicated Ethernet cable
Small size, easy installation
Maintenance-free use
Stable transmission, no packet loss, no string code, large return loss, low insertion loss

Send email to us

Product Detail

Product Tags

DHK035-9-002
The main parameters
Number of circuits	9	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

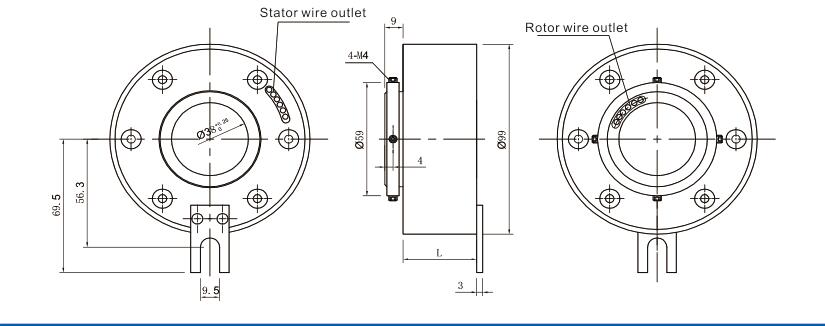

Standard product outline drawing:

Product features

Stable transmission of 100M Ethernet signal
The brush contact part is plated with rare precious metals, which has a long service life
Plug-and-play RJ45 interface
Dedicated Ethernet cable
Small size, easy installation
Maintenance-free use
Stable transmission, no packet loss, no string code, large return loss, low insertion loss

Typical applications

Small network system
Video surveillance system
Stage control system
Industrial automation control
All kinds of network cables and RJ45 interface transmission

Our Advantage

Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
Company advantage: The R&D team of Ingiant has strong research and development strength, rich experience, unique design concept, advanced testing technology, as well as years of technical accumulation and cooperation and absorption of foreign advanced technology, making our technology always maintain the international leading level and lead the industry.
Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
