Ingiant through hole gas-electric slip ring hole diameter 35mm with 6 channels power and 2 channels gas

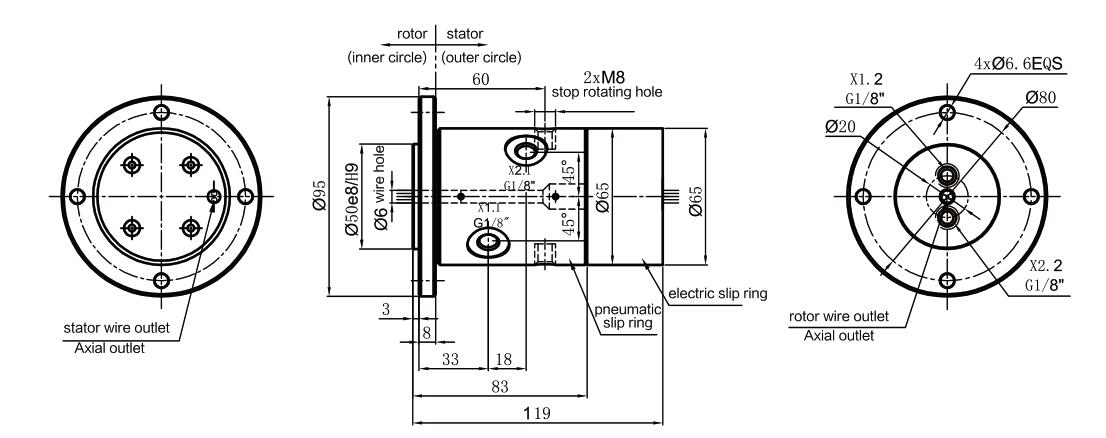

Standard product outline drawing:

DHK035-6-2Q through hole gas-electric slip ring is a gas-electric rotary joint with an inner hole of 35 mm and a through-shaft installation. This gas-electric slip ring supports the transmission of various gas media such as compressed air, vacuum, hydrogen, nitrogen, chemical mixed gas, steam, etc. At the same time, it can transmit the transmission of various specifications of current from 0 to 1000A, and can also simultaneously transmit various control signals such as network, industrial bus, high-definition signal line, etc.

Features:

• 360-degree rotation to transmit gas, power signal and other media at the same time
• Support 1~128 power lines or signal lines
• Standard interfaces include G1/8″, G3/8″, etc.
• The size of the gas pipe can be determined according to customer requirements.
• Can transmit compressed air, vacuum, hydraulic oil, water, hot water, coolant, steam and other media.
• Special requirements such as high speed and high pressure can be customized according to requirements.

Typical applications：industrial machine processing centers, rotary tables, heavy equipment towers, cable reels, packaging equipment, magnetic clutches, process control equipment, rotary sensors, emergency lighting equipment, robots, exhibition/display equipment

Our Advantage

1）Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.

2）Company advantage: The R&D team of Ingiant has strong research and development strength, rich experience, unique design concept, advanced testing technology, as well as years of technical accumulation and cooperation and absorption of foreign advanced technology, making our technology always maintain the international leading level and lead the industry.

3）Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
