Ingiant through hole Gigabit Ethernet slip ring hole diameter 15mm 2 Gigabit Ethernet signals with 37 power and signal rings

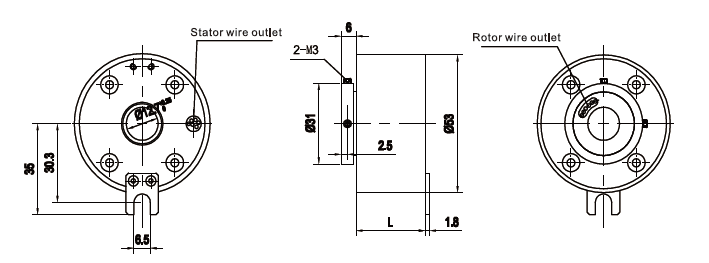

Standard product outline drawing:

Gigabit Ethernet slip ring – through hole slip ring series

Accept customization, transmit 100/1000M Ethernet signal

DHK015-55-002 is a through hole Gigabit Ethernet slip ring with an inner diameter of 15mm. It can transmit 2 Gigabit Ethernet signals and can be combined with 37 power and signal rings (2-20A). Gigabit Ethernet has high-speed transmission characteristics and provides up to 1Gbps communication bandwidth. Ethernet slip rings are made of reliable precious metal materials and aluminum shells. The mature and stable process makes the slip rings have the remarkable characteristics of stable transmission, no packet loss, anti-crosstalk, large return loss and small insertion loss.

Product features

• Stable transmission of 2-channel Gigabit Ethernet signals
• The brush contact part is plated with rare precious metals, which has a long service life
• Plug-and-play RJ45 interface
• Dedicated Ethernet cable
• Small size, easy installation
• Maintenance-free use
• Stable transmission, no packet loss, no string code, large return loss, low insertion loss

Typical applications:

Various radars, security equipment, entertainment equipment, various robots, manipulators, various airships, various wind power equipment, bottle blowing machines, light inspection machines, various turntables, amusement equipment, virtual 3D, VR equipment, vehicle-mounted satellite antennas, ship-mounted satellite wires, cable reels, window cleaning equipment, revolving tables, revolving stages, revolving screens, revolving restaurants, electric engineering machinery, the latest VR simulation equipment, etc., especially in the large-screen LED rotary slip rings are the most widely used.

Our Advantage

1. Product advantage: Hollow shaft slip rings are suitable for both directions of rotation. They are designed in such a way that both the inner or the outer ring can be rotated or blocked. This makes their use very flexible. Hollow shaft slip rings are maintenance-free and have a precisely defined service life. As they are very inexpensive and easy to replace, their use ensures long-term operational reliability.
2. Company advantage: Ingiant Provide OEM and ODM service, over 20 years of industry-related industry experience. Advanced production equipment workshop, including mold, production assembly workshop, craft workshop. 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent.
3. Customization advantage：The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for customised solutions. Practical slip ring solutions for your application
