Ingiant through hole Gigabit ethernet slip rings 1channel Gigabit Ethernet signal and 18 channels power

Short Description:

Ethernet slip ring – DHK078-27 series

Customizable, running 100/1000M Ethernet signal

DHK078-27 series are specially designed for 1000M base T signals, can transmit 1 channel Gigabit Ethernet signal combined with 18 power rings(2~20A), adopt fiber brushes material with the advantage of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss. Available for custom design as per actual demand

Send email to us

Product Detail

Product Tags

DHK078-27
Main Parameters
Number of circuits	27	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

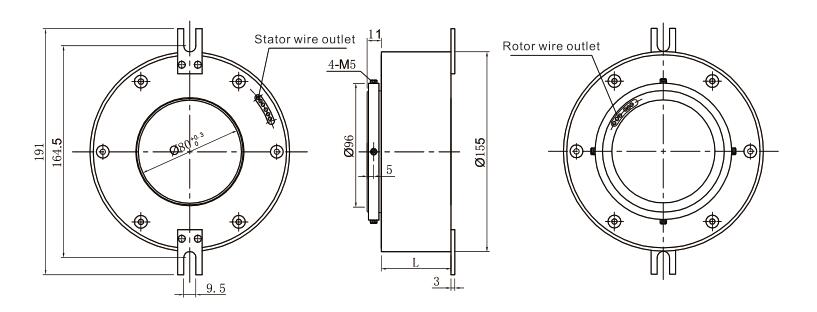

Standard product outline drawing:

Ethernet slip ring – DHK078-27 series

Customizable, running 100/1000M Ethernet signal

Feature

Multi-point brush contact material ensure long life
Stable transmit 1 channel Gigabit Ethernet signal
Integrated structure design for easy installation
Standard model and customization are available
IP 51 (IP54-IP68 can be customized)
With RJ45 male connectors, RJ45 female optional
Ethernet cable connection
With advantages of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss, etc.
Free maintenance

Gigabit ethernet slip rings can be used in wind turbines, industrial robots, and radar antennae which need rotary platforms.

Our Advantage

Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
