Ingiant (through hole, hollow shaft) slip ring hole diameter 28mm, 5 circuits 3A
|
DHK028-5 |
|||
|
|
|||
|
Number of circuits |
5 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

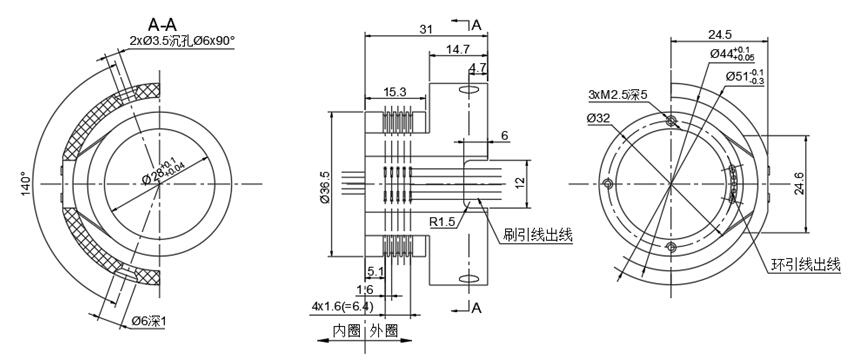

Standard product outline drawing:
Ingiant non-standard customized through-hole conductive slip ring, the diameter of the through hole is 28mm (suitable for any rotating device with a hole diameter ≤ 28mm), and the shell material can be plastic, aluminum alloy or stainless steel. It is a precision conductive slip ring with an integral structure.
The through-hole conductive slip ring can stably transmit 10A current (magnification*10A) or 2A signal, and can be used for small automatic weather stations, wireless wind speed and direction detectors (wind speed and direction recorders), cranes, battery pole piece rolling mills, and automatic vacuum packaging machines , small automatic filling machine, self-controlled aircraft amusement equipment, self-controlled bee and other amusement facilities, automation equipment such as textile machinery, raw material storage and delivery system, automatic nail coiling machine, automatic winding machine, robot vision system.
