Ingiant Through Hole Slip Ring Combines Power and 100M Ethernet
|
DHK035F-17 |
|||
|
The main parameters |
|||
|
Number of circuits |
17 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

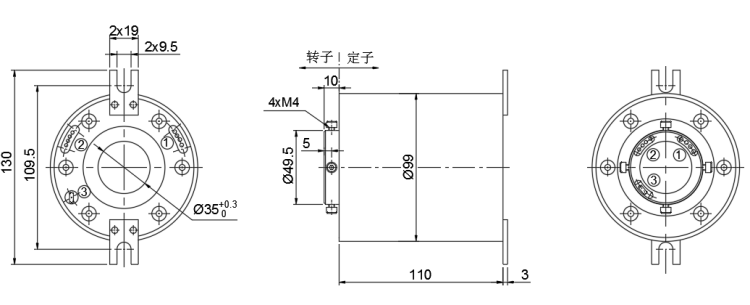

Standard product outline drawing:
Ethernet Slip Rings
Ethernet slip rings for reliable transmission of power and signal current in demanding applications. The industrial standard for automation technology is called Ethernet.
Wherever a production line is to be automated to the greatest possible extent and run in the fastest possible cycle, Ethernet is the measure of all things. No other data transmission system is better suited for the production processes of Industry 4.0. With our Ethernet slip rings, we now also offer you the matching rotary feedthroughs.
These slip rings not only offer you a simple feed-through of a signal via a rotating route. They can accomplish this inherently demanding task at phenomenal speeds: Our Ethernet slip rings create rotation speeds of up to 600 rotations per minute. With this speed, your processes will leave nothing to be desired.
Our Advantage
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
