Ingiant through hole slip ring Ethernet slip rings hole diameter 100mm 42channels

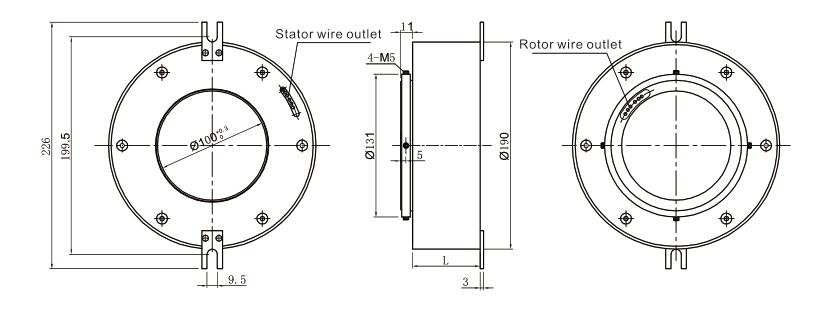

Standard product outline drawing:

      Ethernet slip rings are conductive slip rings, collector rings, slip rings, and electrical rotating joints specially used to transmit Ethernet signals. The Ethernet slip ring is specially designed for 250Mhz frequency signals and is used to transmit 100M/1000M Ethernet signals. It can mix electrical power channels and signal channels, and can transmit multi-channel medium and low-frequency signals and currents at the same time. It has stable transmission, no packet loss, An electrical rotary joint with the advantages of no cross-coding, low return loss, and low insertion loss.

Characteristics of Ethernet slip rings

1. It can mix electrical power channels and signal channels, and can transmit multi-channel medium and low frequency signals and currents at the same time.
2. The transmission signal is stable, no packet loss, no serial coding, small return loss and small insertion loss.
3. The number of channels can reach 56
4. The maximum through hole of the hollow shaft slip ring can be designed to 100mm
5. Super long life and maintenance-free
6. 360° continuous rotation to transmit power or data signals
7. Compatible with data master protocol

Our Advantage

• 1. Product advantage: They are only a few millimetres high and thus very space-saving along the longitudinal axis. the pancake slip rings are shielded to at least protection class IP 40, or IP51 or higher if desired. Another significant advantage of pancake slip rings is their expandability Another significant advantage of pancake slip rings is their expandability.
• 2. Company advantage: Ingiant Technology has accumulated rich experience in developing and producing highly reliable conductive slip rings for many years, especially in large size slip rings, effectively improving product quality and yield, and saving costs for customers.
• 3. Excellent after-sales : The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products. Provide technical information and technical training support on a regular basis.
