Ingiant through hole slip ring for packaging machine

Short Description:

Application filed: Widely used in exhibit/display equipment, hotel, guesthouse revolving door control system,intelligent robots,engineering machinery, packaging equipment, stackers, magnetic llutches,process control equipment, rotation sensors, emergency lighting equipment, defense, security, etc.

Send email to us

Product Detail

Product Tags

Specification

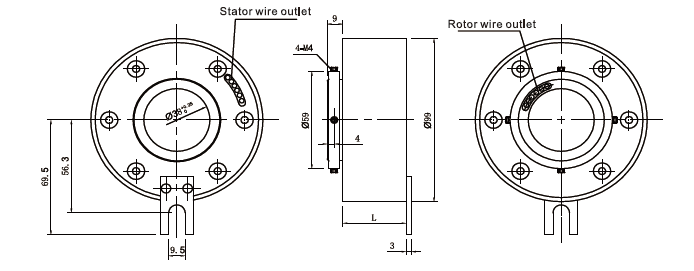

DHK038-10
The main parameters
Number of circuits	10	Working temperature	“-40℃~+65℃"
Rated current	5 circuits/10A, 5 circuits/2A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

Application Filed

Widely used in exhibit/display equipment, hotel, guesthouse revolving door control system,intelligent robots,engineering machinery, packaging equipment, stackers, magnetic llutches,process control equipment, rotation sensors, emergency lighting equipment, defense, security, etc.

Our advantage

1） Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance. Comprehensive quality management system, strict management in all aspects of design, manufacturing, testing, etc., to ensure the use of materials, coupled with high-precision imported equipment and high-tech technology to ensure, our products Performance and indicators are always at the forefront of similar products in the world.
2） Company advantage: More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. Depending on strong R&D ability and close cooperation with well-know enterprises & research institutes, Ingiant could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s different requirements.

3） Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
