Ingiant Through hole slip ring hole diameter 20mm with 6 channels/10A power

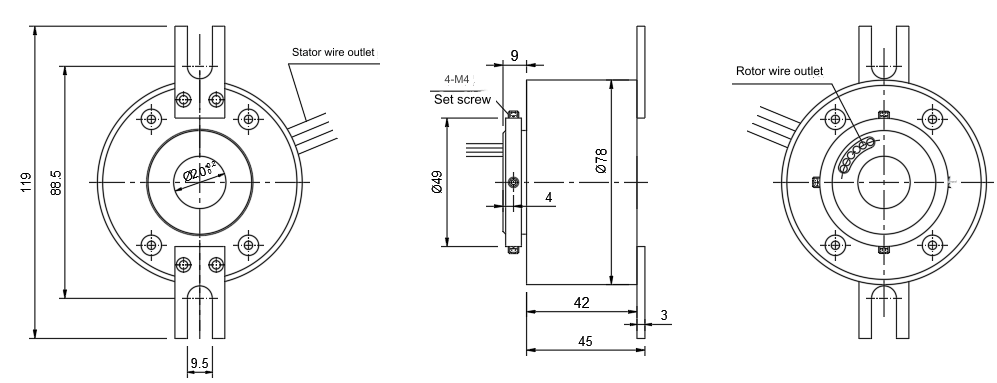

Standard product outline drawing:

Through Hole Slip Rings - DHK020-6-10A-002

Available for Custom, ID 3-500 mm, Current 2-1000A

DHK020-6-10A-002 through hole slip ring, with hole diameter 20mm and 6 channels/10A power, suitable for rotating applications with through-hole ≤ 20mm.  Through hole slip ring totally meets with continuous transmission of power, signals, weak current, high current, and high voltage under 360-degree unrestrained rotations. Low torque, low electrical noise, low loss, and easy maintenance as the main features.

Features

•  Multi-point brush contact material ensure long life
•  Integrated structure design for easy installation
•  Standard model supports 1-24 power rings(0-10A/ring) or 1-48 signal rings(0~5A/ring)
•  IP 51 (IP54-IP68 can be customized)
•  Both the data bus agreement compatible
•  Free maintenance

Typical applications

• Automatic machinery
• Cable drums
• Robots/rotary sensors
• Display/exhibition equipment
• Packaging machinery
• Industrial turntables
• Medical/pharmaceutical equipment
• Marking machines
• Filling machinery
• CNC machine tools

Our Advantage

1. Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
2. Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
3. Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
