Ingiant through hole slip ring hole diameter 30mm 12 channels of 10A electrical power and signals

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

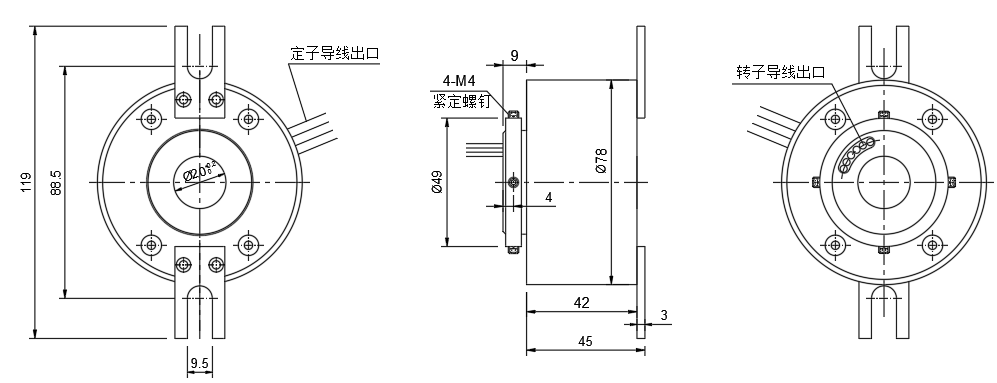

Standard product outline drawing:

Features:

● Composed of 12 channels of 10A electrical power and signals;

● Temperature range -40℃～+65℃;

● Automated production of key nodes with extremely high reliability and consistency;

● Compact structure design, smooth operation and low torque;

● The surface of the ring is very smooth, with a surface roughness of <0.5μm, which avoids the phenomenon of brush filament flashing and early powder accumulation;

● Low electrical noise, no electromagnetic interference, low loss, military-grade service life up to 20 million revolutions @350RPM;

● Military grade adopts wear-resistant and corrosion-resistant three-level superhard gold technology, and its hardness, strength, wear resistance and conductivity are better than the international military standards for connector contacts;

● Mainly used in power supply and signal rotation transmission of intelligent industry, engineering machinery, robots, robotic arms and automation equipment.

Transmission signal:

Mixed transmission of current, electrical signals, radio frequency, data, gas, liquid and other media.

Our Advantage

1. Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
2. Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
3. Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
