Ingiant through hole slip ring hole diameter 35mm 36channels 5A

Short Description:

INGIANT through hole slip ring



1. Specially designed with a central hole for installing hydraulic or pneumatic transmission shafts

2. Via diameters are available from 12.7mm, 25.4mm, 35mm, 38mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm to 500mm;

3. The conductive slip ring adopts a modular design, which can be arbitrarily expanded according to the power and signal requirements, and provides different electrical path combinations;

4. High sealing level is optional, up to IP68.

5. A variety of rotational speeds are available, with a maximum customizable speed of 8000RPM (no gas cooling required);

6. Adopt advanced precious metal multi-point contact fiber brush technology, which has higher reliability

7. We can provide non-standard customization with fast delivery, reliable quality and competitive price according to customer requirements.


Product Detail

Product Tags

DHK035-36-5A

The main parameters

Number of circuits

36

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

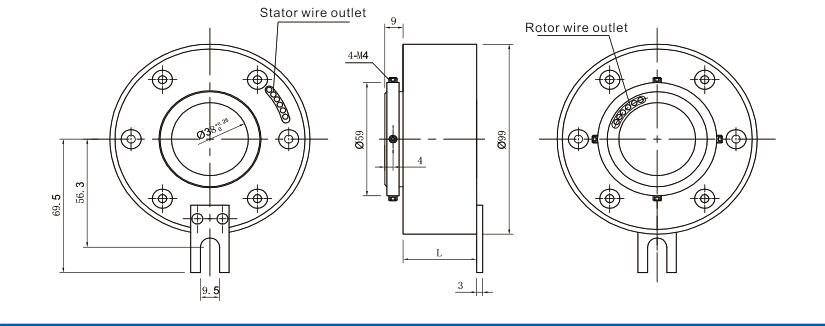

Standard product outline drawing:

DHK038

INGIANT through hole slip ring



1. Specially designed with a central hole for installing hydraulic or pneumatic transmission shafts

2. Via diameters are available from 12.7mm, 25.4mm, 35mm, 38mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm to 500mm;

3. The conductive slip ring adopts a modular design, which can be arbitrarily expanded according to the power and signal requirements, and provides different electrical path combinations;

4. High sealing level is optional, up to IP68.

5. A variety of rotational speeds are available, with a maximum customizable speed of 8000RPM (no gas cooling required);

6. Adopt advanced precious metal multi-point contact fiber brush technology, which has higher reliability

7. We can provide non-standard customization with fast delivery, reliable quality and competitive price according to customer requirements.
