Ingiant through hole slip ring hole diameter 65mm with 74 channels power/signal for Rotating solutions
|
DHK065-74 |
|||
|
The main parameters |
|||
| Number of circuits | 74 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

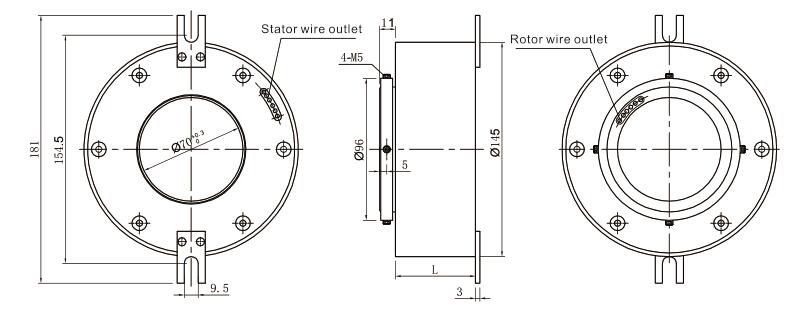

Standard product outline drawing:
Through Hole Slip Rings – ID 65mm Series
Available for Custom, Standard ID 3-500 mm, Current 2-1000A
DHK065-74 Through hole slip ring inner diameter 65mm, Can supports 1-48 power rings(0-20A/ring) or 1-96 signal rings(0~5A/ring) .Through hole slip ring totally meets with continuous transmission of power, signals, weak current, high current, and high voltage under 360-degree unrestrained rotations. Low torque, low electrical noise, low loss, and easy maintenance as the main features.
Product features
- Multi-point brush contact material ensure long life
- Integrated structure design for easy installation
- Standard model supports 1-48 power rings(0-20A/ring) or 1-96 signal rings(0~5A/ring)
- IP 51 (IP54-IP68 can be customized)
- Both the data bus agreement compatible
- Free maintenance
Typical applications:
Rotating solutions. applications such as medical rotary CNC worktables, CNC machining centers, wire reels, packaging machinery, wind turbines, automation equipment, automatic detection equipment, automated robots, and robotic arms.
