Ingiant through hole slip ring hole diameter 70mm 4channels 4A

Short Description:

Features: The through-hole slip ring fully meets the mixed transmission of power, control and digital signals of 360-degree unlimited rotation; INGIANT through-hole slip ring adopts advanced fiber brush technology, maintenance-free and no lubricant required; each channel has multiple points of contact, low contact pressure, low noise and low contact wear, ultra-long service life; standardized and modular design, complete product specifications, and can customize the products required by customers.


Product Detail

Product Tags

DHK070-4-4A

The main parameters

Number of circuits

4

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

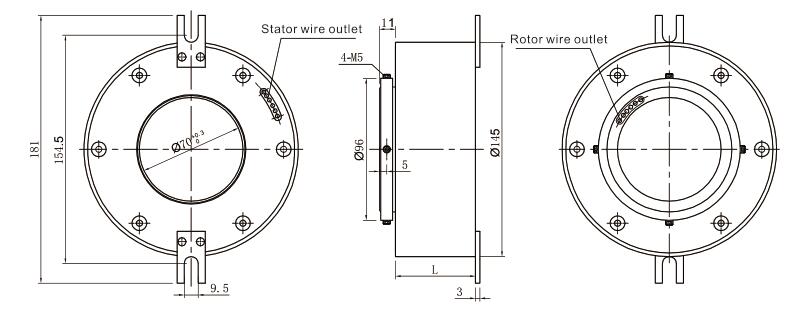

Standard product outline drawing:

DHK070

Features: The through-hole slip ring fully meets the mixed transmission of power, control and digital signals of 360-degree unlimited rotation; INGIANT through-hole slip ring adopts advanced fiber brush technology, maintenance-free and no lubricant required; each channel has multiple points of contact, low contact pressure, low noise and low contact wear, ultra-long service life; standardized and modular design, complete product specifications, and can customize the products required by customers.



Typical applications: Industrial machine machining centers, rotary tables, heavy equipment towers, cable reels, testing equipment, packaging equipment, stackers, magnetic clutches, process control equipment, rotation sensors, emergency lighting, robotics, exhibition/display equipment , medical equipment, etc.

QQ图片20230322163852

Our Advantage

  1. Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
  2. Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
  3. Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.

QQ截图20230322163935
