Ingiant through hole slip ring hole diameter 85mm 16 channels

Short Description:

INGIANT through hole slip rings fully meet the power, control and digital signal mixed transmission of 360-degree unlimited rotation; through-hole conductive slip rings adopt advanced fiber brush technology, maintenance-free, and no lubricant required; each channel has multiple points of contact, low contact pressure and wear, low noise, long service life; standardized and modular design, complete product specifications, and can tailor-make the products required by customers;


Product Detail

Product Tags

DHK085-16

 The main parameters

Number of circuits

16

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

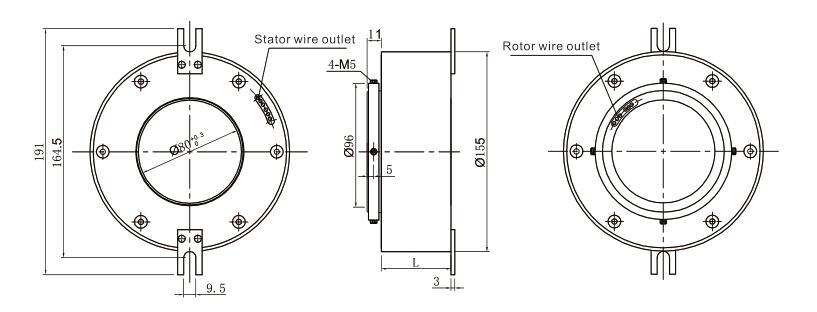

Standard product outline drawing:

DHK080

INGIANT through hole slip rings fully meet the power, control and digital signal mixed transmission of 360-degree unlimited rotation; through-hole conductive slip rings adopt advanced fiber brush technology, maintenance-free, and no lubricant required; each channel has multiple points of contact, low contact pressure and wear, low noise, long service life; standardized and modular design, complete product specifications, and can tailor-make the products required by customers;



Optional options: through hole conductive slip ring rated current, voltage, rated speed, operating temperature, number of channels, shell material and color, dimensions, special wires, wire outlet direction, wire length, protection level, terminal type;



Typical applications: Through hole conductive slip rings are widely used in industrial machine machining centers, rotary tables, heavy equipment towers, cable reels, packaging equipment, stackers, magnetic clutches, process control equipment, rotation sensors, emergency lighting equipment, robots , exhibition/display equipment, medical equipment, revolving doors, etc.;

QQ图片20230322163852

Our Advantage

  1. Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
  2. Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
  3. Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.

QQ截图20230322163935
