Ingiant through hole slip ring standard hole diameter 70mm transmission 17channels signal and power

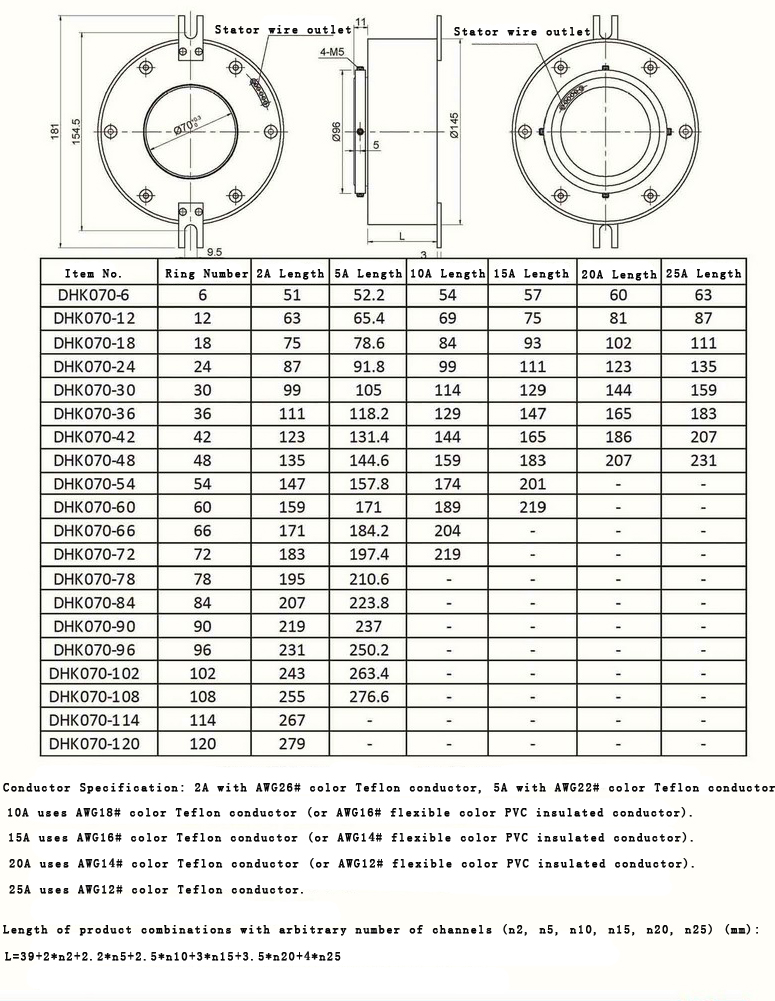

Standard product outline drawing:

Through Hole Slip Rings – DHK070 Series
Available for Custom, Standard ID 3-500 mm, Current 2-1000A
DHK070-17 through hole slip ring, standard series integral precision conductive slip ring with through hole diameter of 70mm (applicable to <=70mm). Support mixed signal and power transmission. Mainly used for transmitting precision signals, weak currents, high currents, and high voltages;

Feature

• Can combine the power, data and signals without interference in one rotary system
• Temperature control signal and thermocouple signal can be combined.
• Advanced multi-point contact brush technology ensures reliable contact with low friction
• Metal housing for better protection
• Integrated structure design, easy installation
• Hole size 70mm
• Standard current option for 0~20A, Standard voltage option for 0~600VAC/VDC
• Rings option for 0~300

Typical applications:
Various radars, security equipment, entertainment equipment, various robots, manipulators, various airships, various wind power equipment, bottle blowing machines, light inspection machines, various turntables, amusement equipment, virtual 3D, VR equipment, vehicle-mounted satellite antennas, ship-mounted satellite wires, cable reels, window cleaning equipment, revolving tables, revolving stages, revolving screens, revolving restaurants, electric engineering machinery, the latest VR simulation equipment, etc.

Our Advantage

1. Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
2. Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
3. Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
