Ingiant through hole slip ring without housing hole diameter 35mm with 5 channels power
|
DHK035-5 |
|||
|
The main parameters |
|||
|
Number of circuits |
5 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

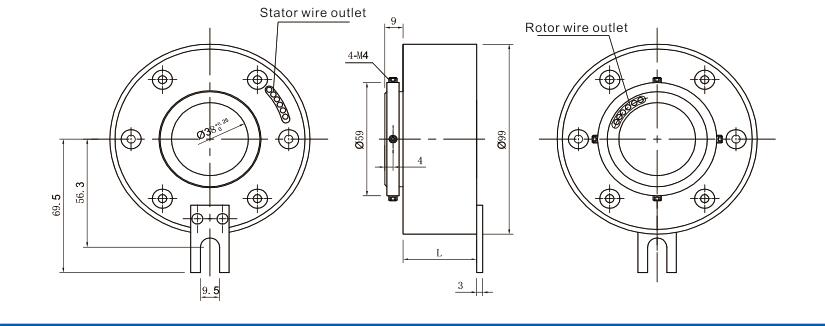

Standard product outline drawing:
DHK035-5 through hole slip ring without housing with an inner hole of 35 mm and a through-shaft installation. 5-channel power supply, supports signal (2A) or 10A, 15A, 30A power supply current, voltage 380VAC/24VDC, working voltage can be customized to 1000V; protection level can be customized to IP65/IP68. Drone manufacturing in particular has increased the demand for housingless slip rings. With these components, comprehensive bidirectional signal transmission is ensured: power supply for rotor motors, acquisition of control signals for cameras and gimbals (camera positioning), monitoring of rotation speed and other parameters are typical signal types in these devices.
Features of through hole slip ring without housing：
- Very space-saving
- Extremely light
- Easy to integrate into existing open systems
- Manufactured in standard sizes
- Easy to replace
- Repairable within a small area
- Corrosion-resistant contacts
- Minimal wear
Through hole slip rings are widely used in rotary solutions. Applications include medical rotary CNC worktables, CNC machining centers, wire reels, packaging machinery, wind turbines, automation equipment, automatic inspection equipment, automated robots, robotic arms, etc.
Our Advantage
1）Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
2）Company advantage: The R&D team of Ingiant has strong research and development strength, rich experience, unique design concept, advanced testing technology, as well as years of technical accumulation and cooperation and absorption of foreign advanced technology, making our technology always maintain the international leading level and lead the industry.
3）Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
