Ingiant waterproof conductive slip ring 26 channels 5A through hole slip ring hole diameter 70mm

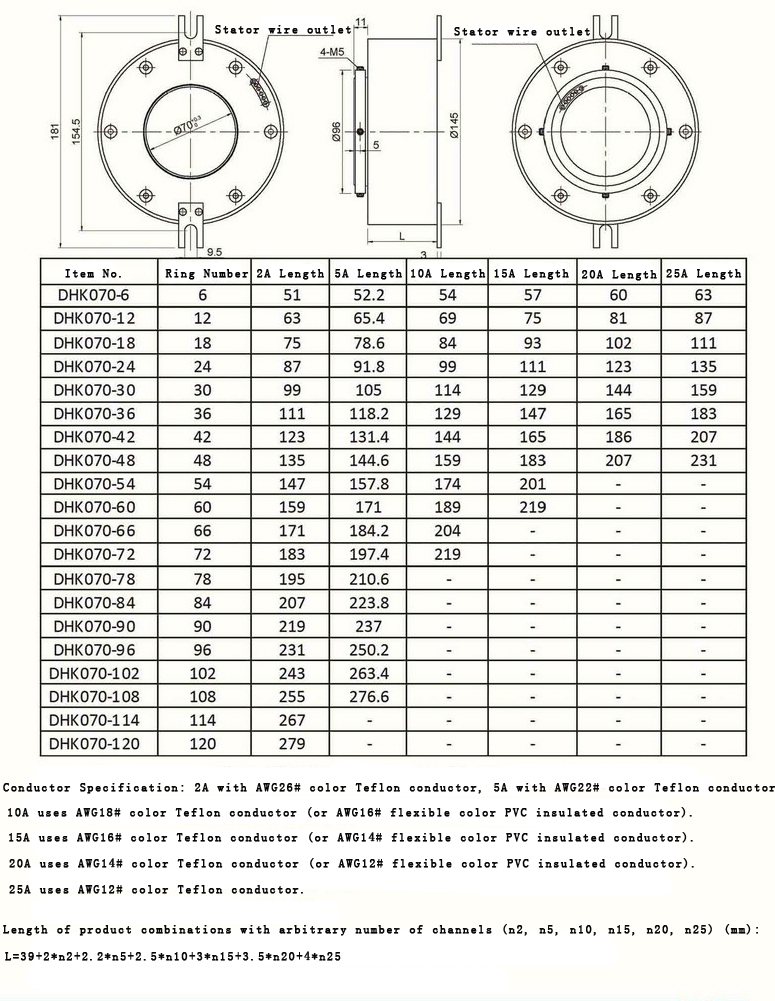

 Standard product outline drawing：

        DHK070F series waterproof conductive slip ring, through hole diameter 70mm (applicable to any <=70mm), outer diameter: 145mm, number of channels: 26 channels, integral precision conductive slip ring with all-aluminum alloy structure. Supports signal, communication, power supply current of 5A, voltage 380VAC/24VDC. Specifically designed for underwater operations and waterproof operations, industrial-grade products, through-hole installation, waterproof IP65-IP68, gold-gold contact, imported sealing And military-grade electroplating treatment, multi-point contact contacts, waterproof glands for outlet wires, cables, etc. can be customized according to requirements.

Typical applications

1.Industrial machines:

Drilling platform, winding machine, end face processing machine, hot rolling machine

2. Rotary table:

Winding machines, filling machines, bottle blowing machines, amusement equipment

3. Cable reel:

Port machinery, hoisting and lifting equipment, road and bridge machinery, tower

4.Test equipment:

Centrifugal test bench, separator, testing instrument

5. Robot:

Packaging equipment, stackers, process control equipment, compression molding machines

6. Exhibition/display equipment:

Automobile exhibition stand, revolving door, product exhibition stand, revolving restaurant

7.Medical equipment:

Shadowless operating lights, helicopters, radar communication equipment

Our Advantage

1. Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
2. Company advantage: Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, own 27 kinds of technical patents of slip rings and rotary joints(include 26 utility model patents, 1 invention patent).
3. Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
